Checking Front Wheel Turning Angle

  1. Rotate steering wheel fully right, then left; measure turning angle.
  2. If it is not within specification, check stopper bolt adjustment.

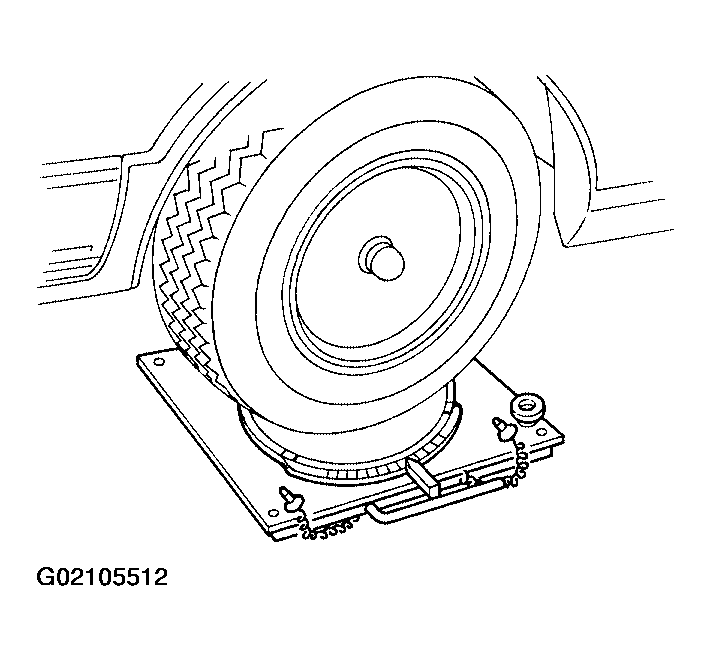

Fig 1: Checking Front Wheel Turning Angle
G02105512Courtesy of NISSAN MOTOR CO., U.S.A.
