Disassembly And Assembly: Disassembly

  1. Remove the steering column shaft from the front side of the jacket tube.
  2. Remove the tilt device from the jacket tube.
  3. Remove the lock nut and adjust stopper according to the following procedure.
    1. Turn the tilt lever to the unlock side.

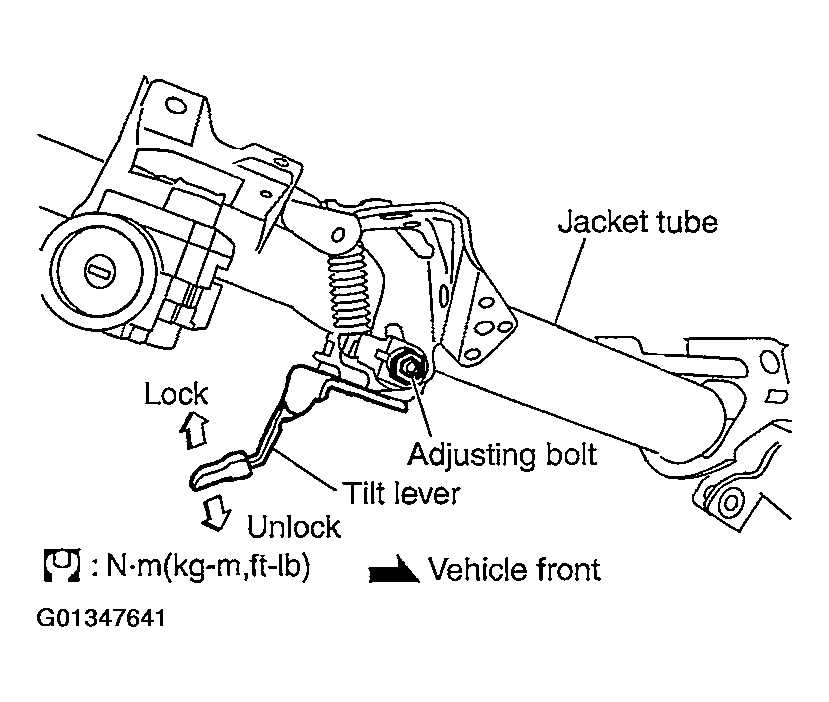

      Fig 1: Locating Tilt Lever To Unlock Side
      G01347641Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Remove the spring.
    3. Lock the adjusting bolt, then remove the lock nut.

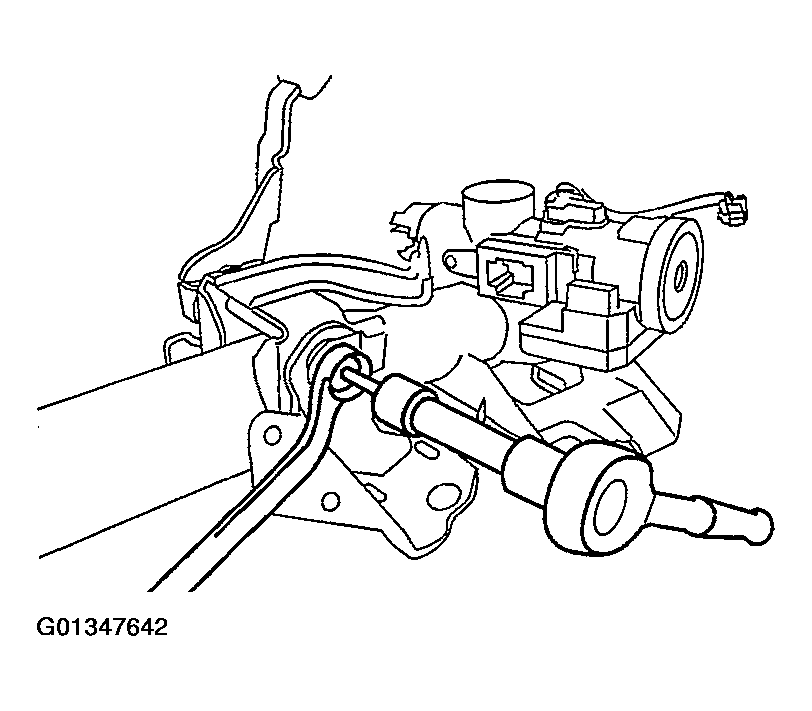

      Fig 2: Removing Lock Nut
      G01347642Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Loosen the adjusting bolt, then remove the tilt lever.

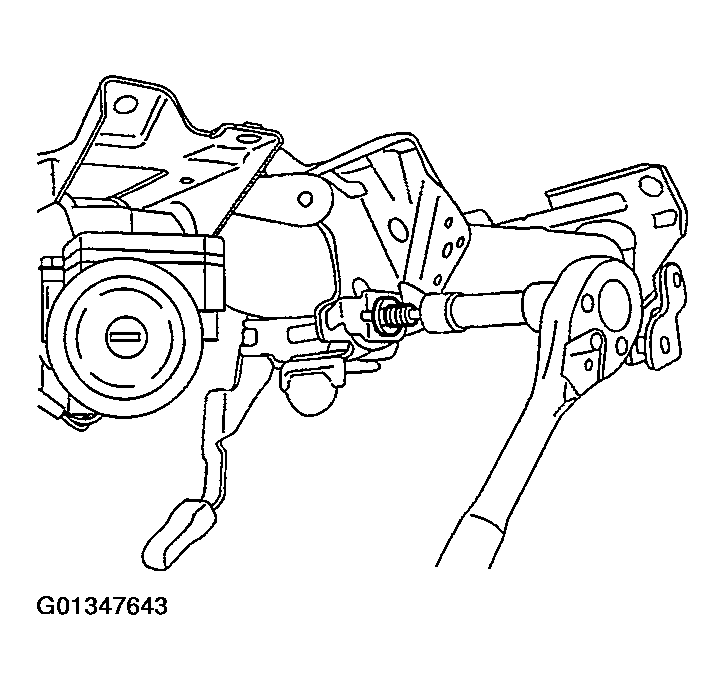

      Fig 3: Removing Tilt Lever
      G01347643Courtesy of NISSAN MOTOR CO., U.S.A.
