Section 5 (Engine Mechanical - 1.8L)
>>
Cylinder Block
>>
Components
Cylinder Block: Components
WARNING:
This page is about a different variant/trim than selected.

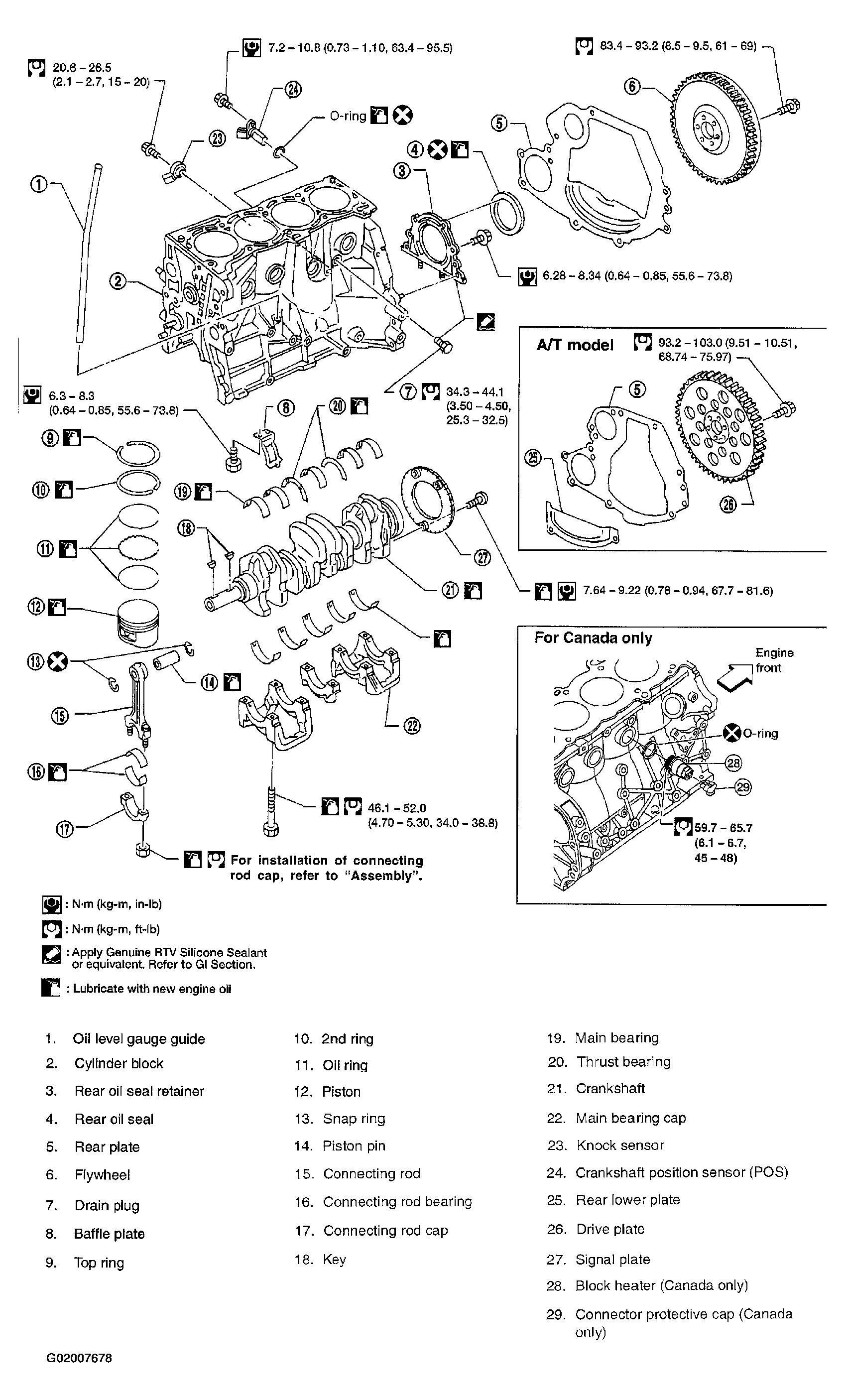

Fig 1: Identifying Cylinder Block Components
Courtesy of NISSAN MOTOR CO., U.S.A.
