Consult-II Reference Value In Data Monitor Mode

Remarks: Specification data are reference values.

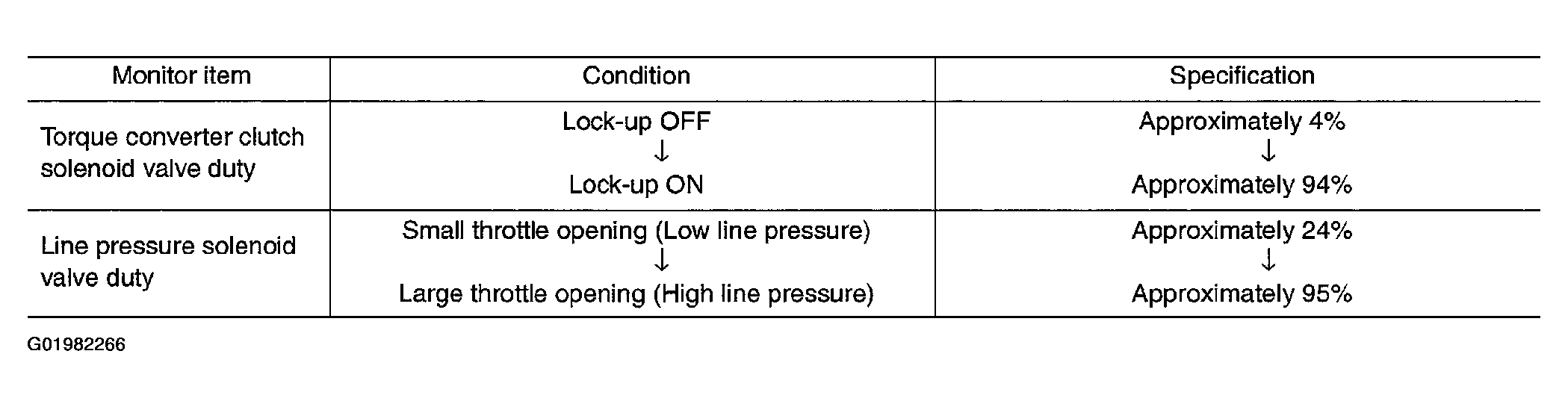

Fig 1: CONSULT-II Reference Value In Data Monitor Mode

G01982266

Courtesy of NISSAN MOTOR CO., U.S.A.
