Amplifier (Driver's Power Window Switch)

Check power source and ground continuity as indicated in test charts. Check input and output signals. See Fig 1. Replace driver's power window switch/amplifier as necessary.

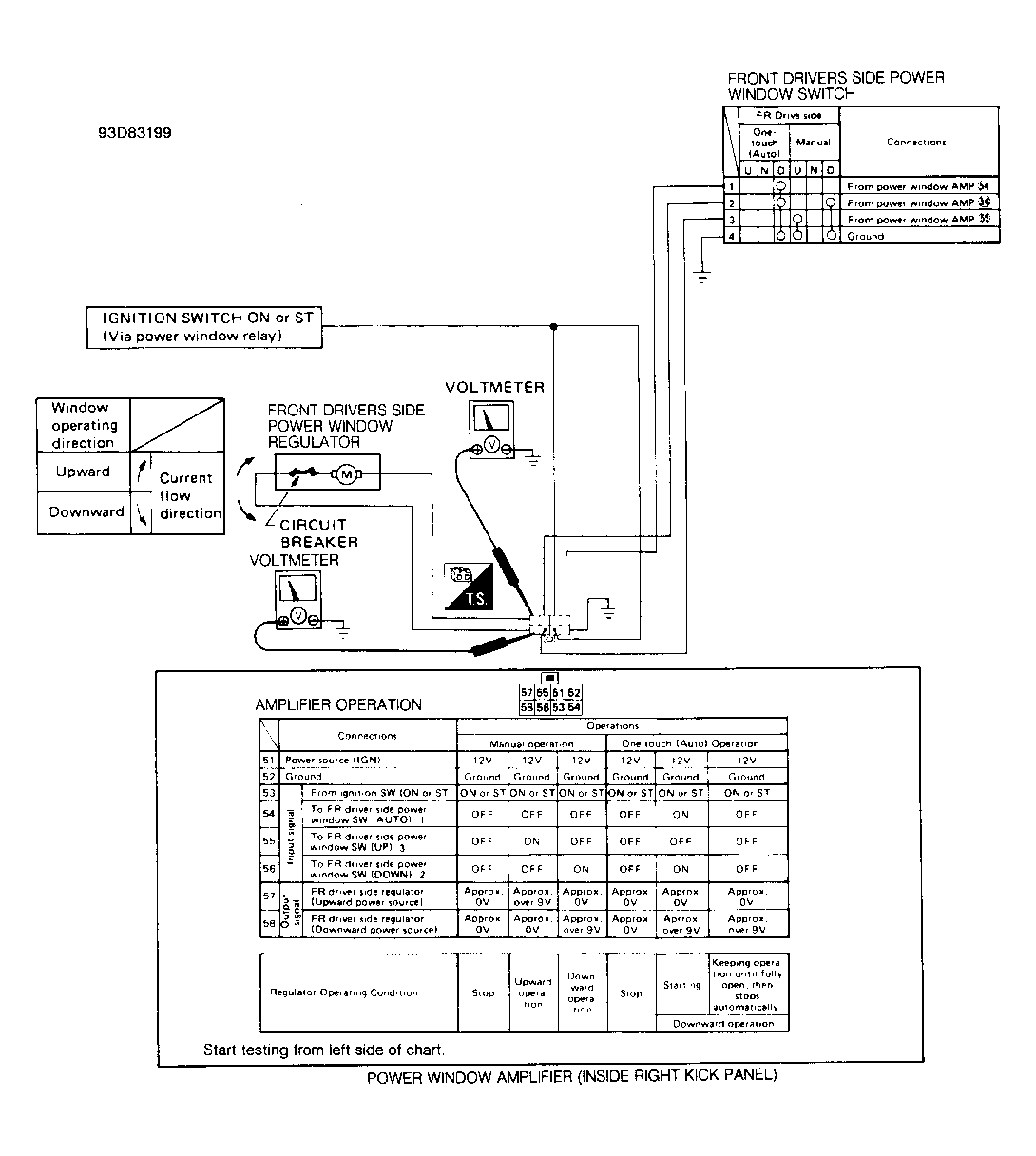

Fig 1: Testing Driver's Power Window Switch Amplifier (Pathfinder)

Courtesy of NISSAN MOTOR CO., U.S.A.
