Time Control Unit: Description

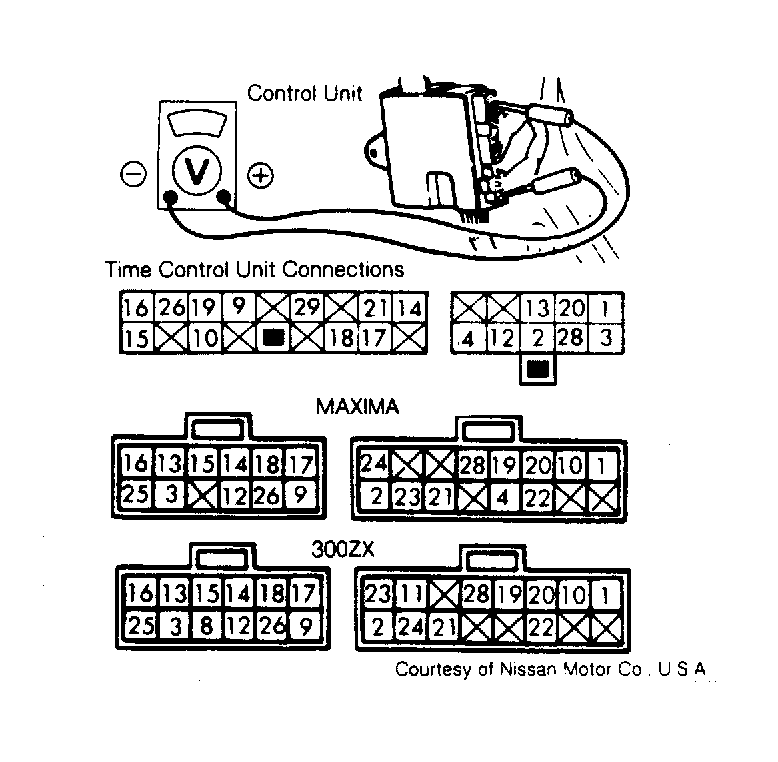

The Time Control Unit is used on Maxima, 200SX and 300ZX models. See Figure . All tests are made using a voltmeter. Insert voltmeter probes into REAR of connectors while they are still plugged into control unit. Ensure ignition key is in correct position while testing each circuit. Perform tests in order listed.
