Timer Control Modules: Wiring Diagram

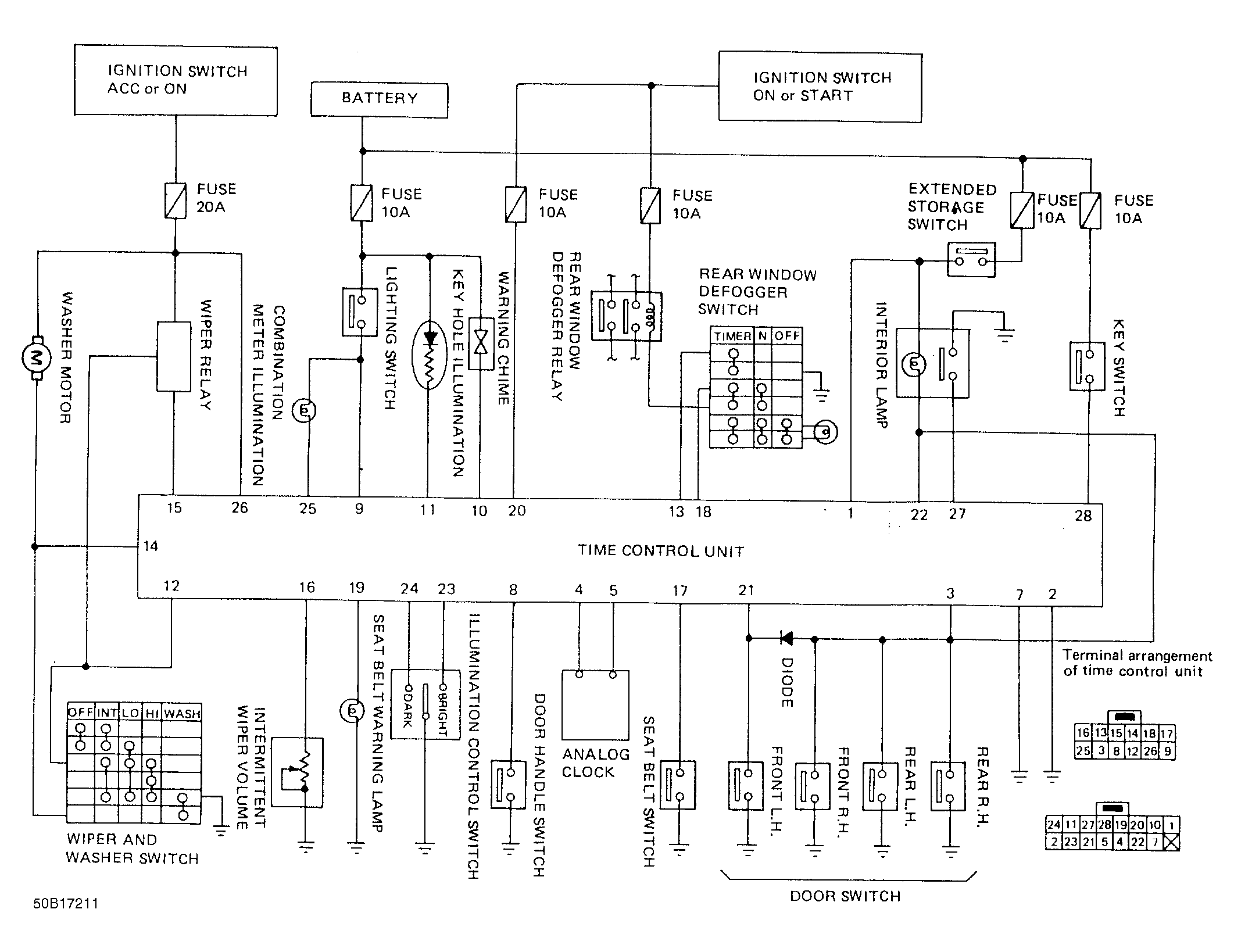

Fig 1: Timer Control Unit System Schematic

G50B17211

Courtesy of NISSAN MOTOR CO. U.S.A.
