Home >> Nissan-Datsun >> 1987 >> Stanza GXE, Standard >> Repair and Diagnosis >> Body & Frame >> Body, Cab Control Systems >> Timer Control Modules >> Operation

Timer Control Modules: Operation

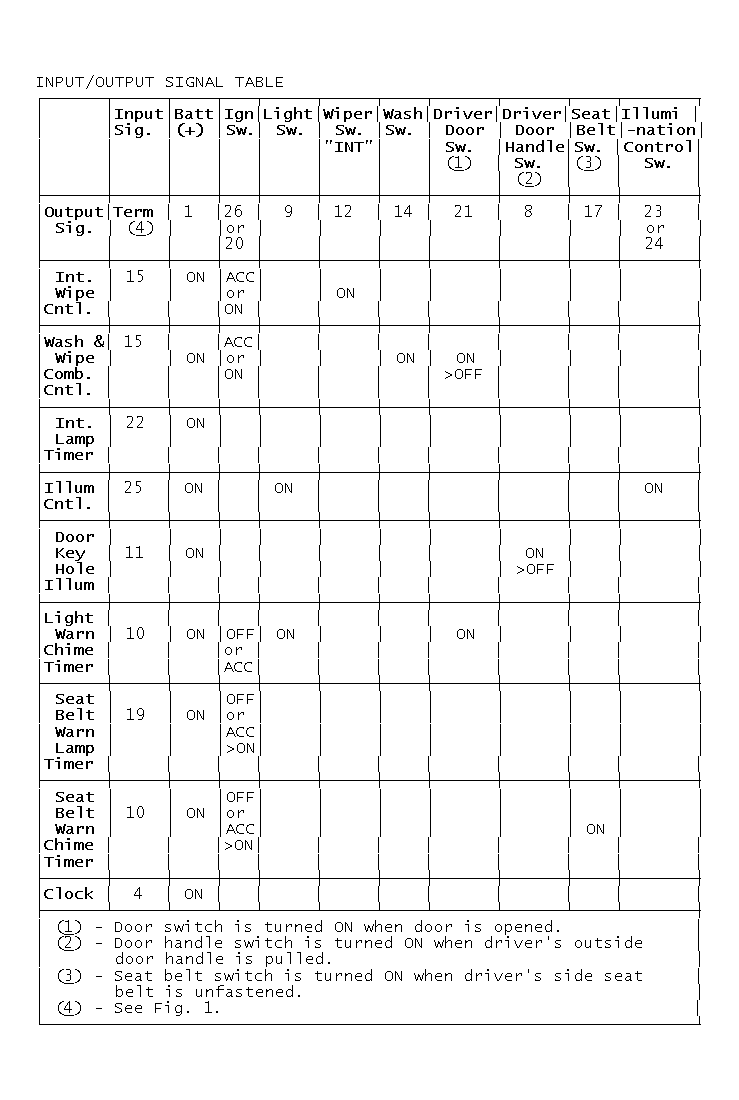

Fig 1: INPUT/OUTPUT SIGNAL TABLE

GB0050274
