Intermittent Amplifier: Notes

  1. Remove amplifier from vehicle or position so jumper wires can be connected to terminals. Use care to prevent improper connections since amplifier can be damaged.

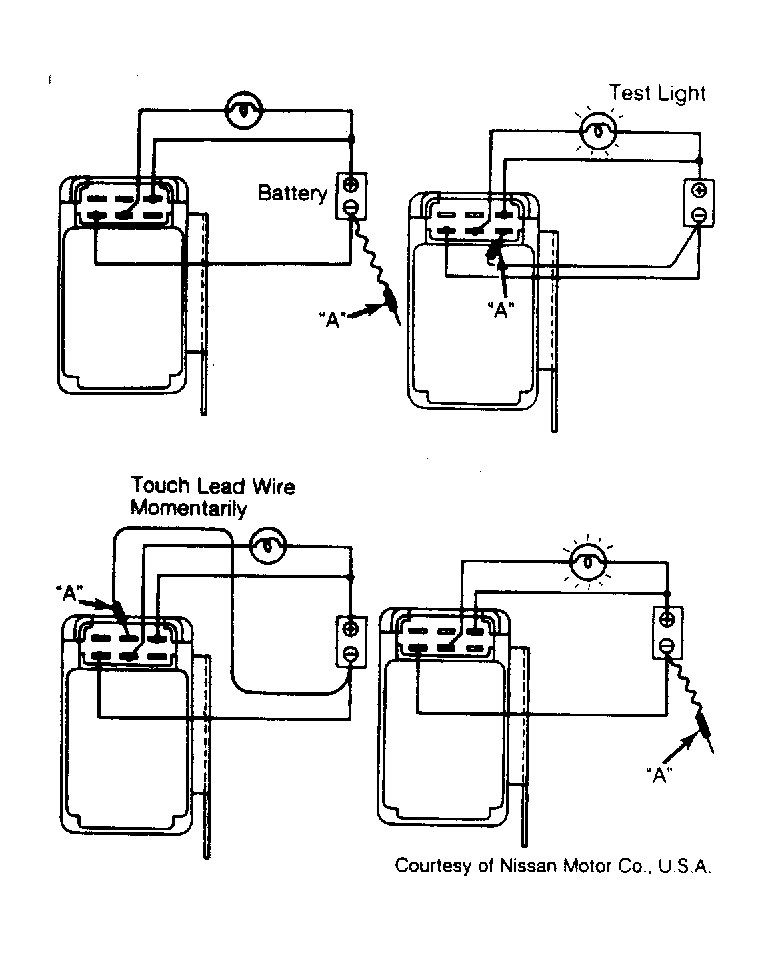

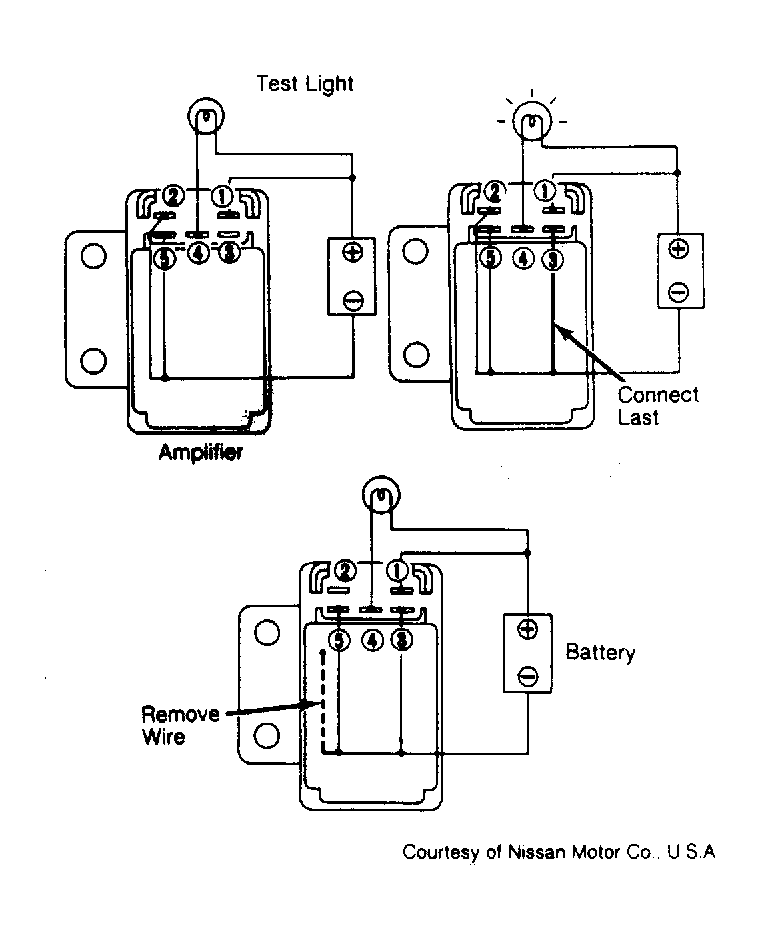

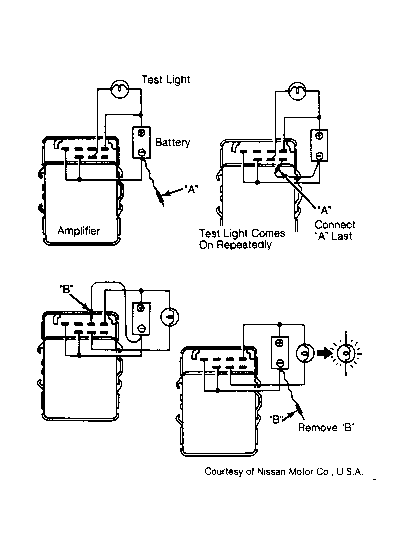

  2. Connect test light and battery to terminals. See Figure, Figure, and Figure. Correct test procedures must be used depending on vehicle being tested.
