Vehicle Speed Sensor (Switch On/Off Diagnosis)
Vehicle Speed Sensor (Switch On/Off Diagnosis)

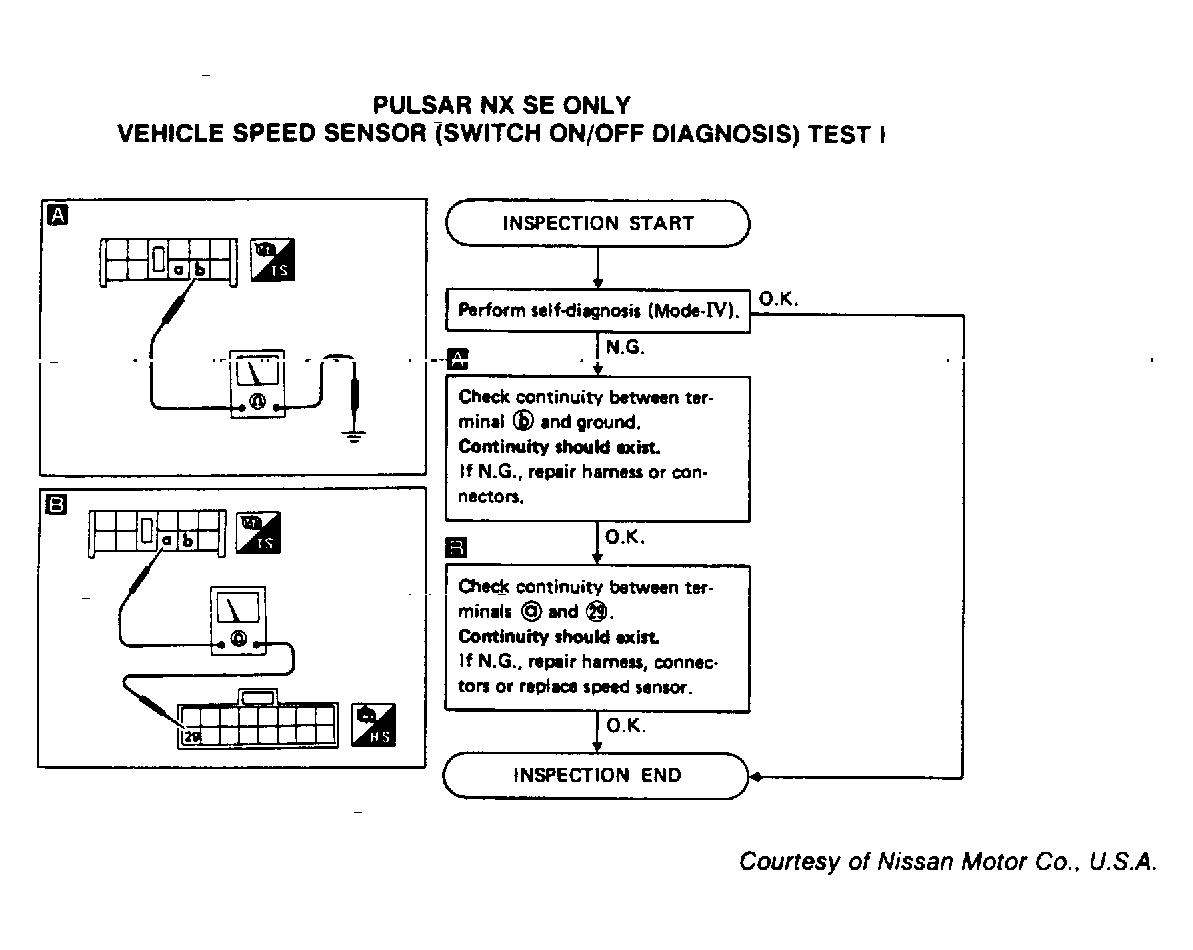

Fig 1: Test I, Pulsar NX SE

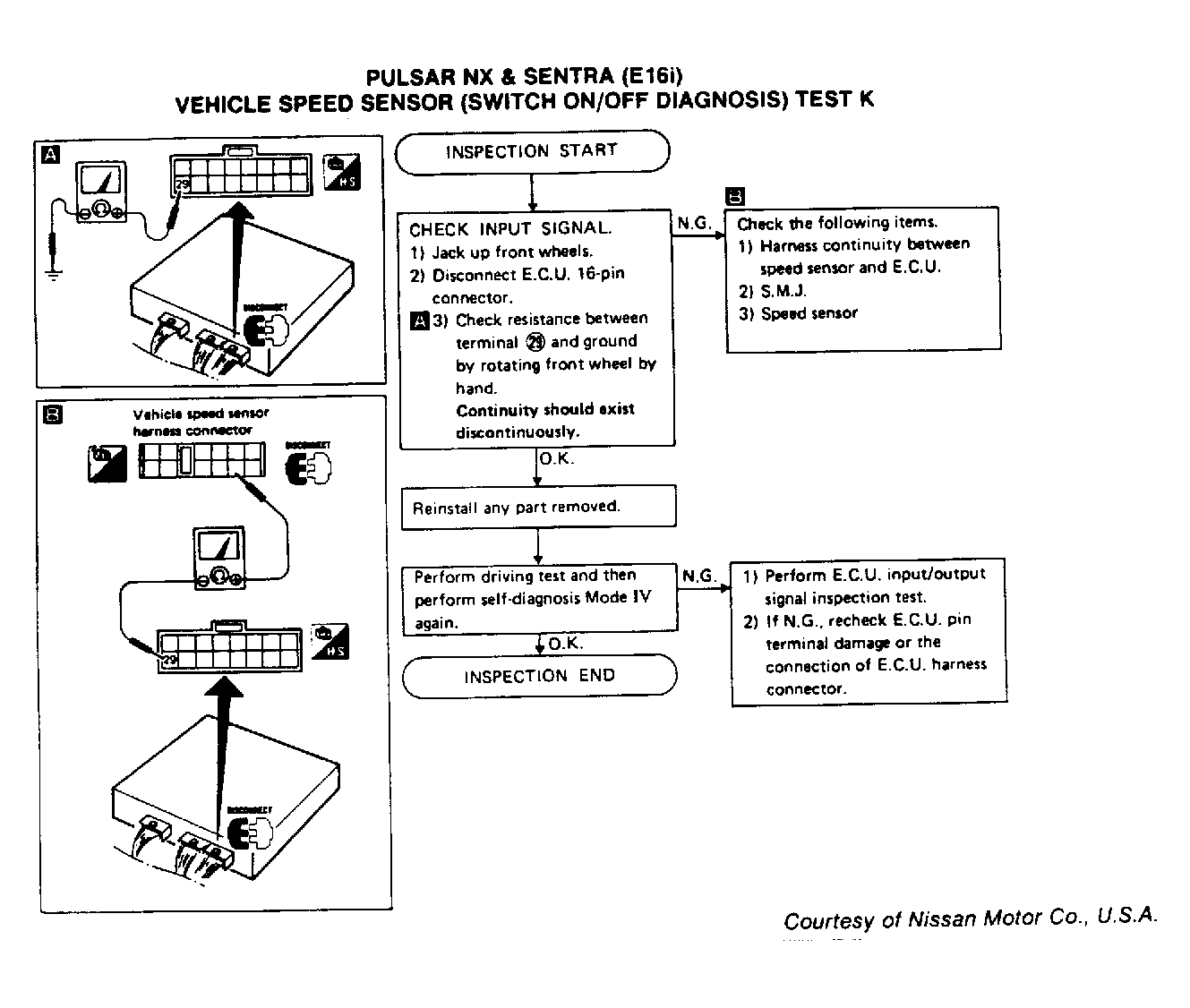

Fig 2: Test K, Pulsar NX & Sentra (E16i)
