Rack Stroke Specifications: Notes
RACK STROKE SPECIFICATIONS
| Application | Cylinder Side In. (mm) | Pinion Side In. (mm) |
|---|---|---|
| Maxima | 2.76 (70) | 2.24 (57) |
| Pulsar | 2.90 (74) | 1.25 (32) |
| Sentra | 2.90 (74) | 2.36 (60) |
| Stanza | 2.80 (71) | 2.20 (56) |
| 200SX | 2.76 (70) | 2.24 (57) |
| 300ZX | 2.44 (62) | 1.77 (45) |

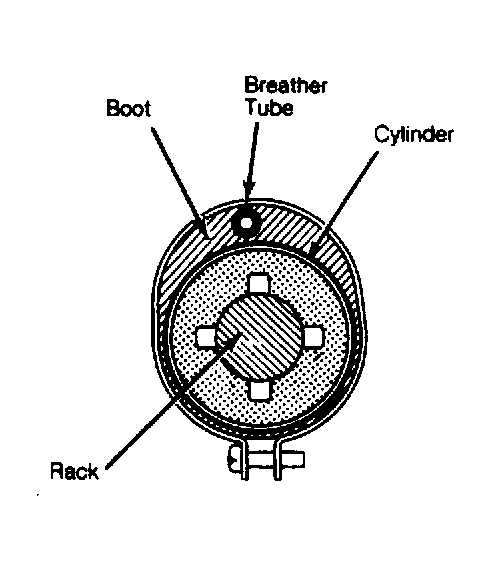

- Install boot. See Fig 1 . Set breather tube. Locate clamp bolt opposite breather tube and tighten. Ensure rack moves smoothly, boot is not deformed, and that clamp is held tightly in place.
