Base Ignition Timing Specifications

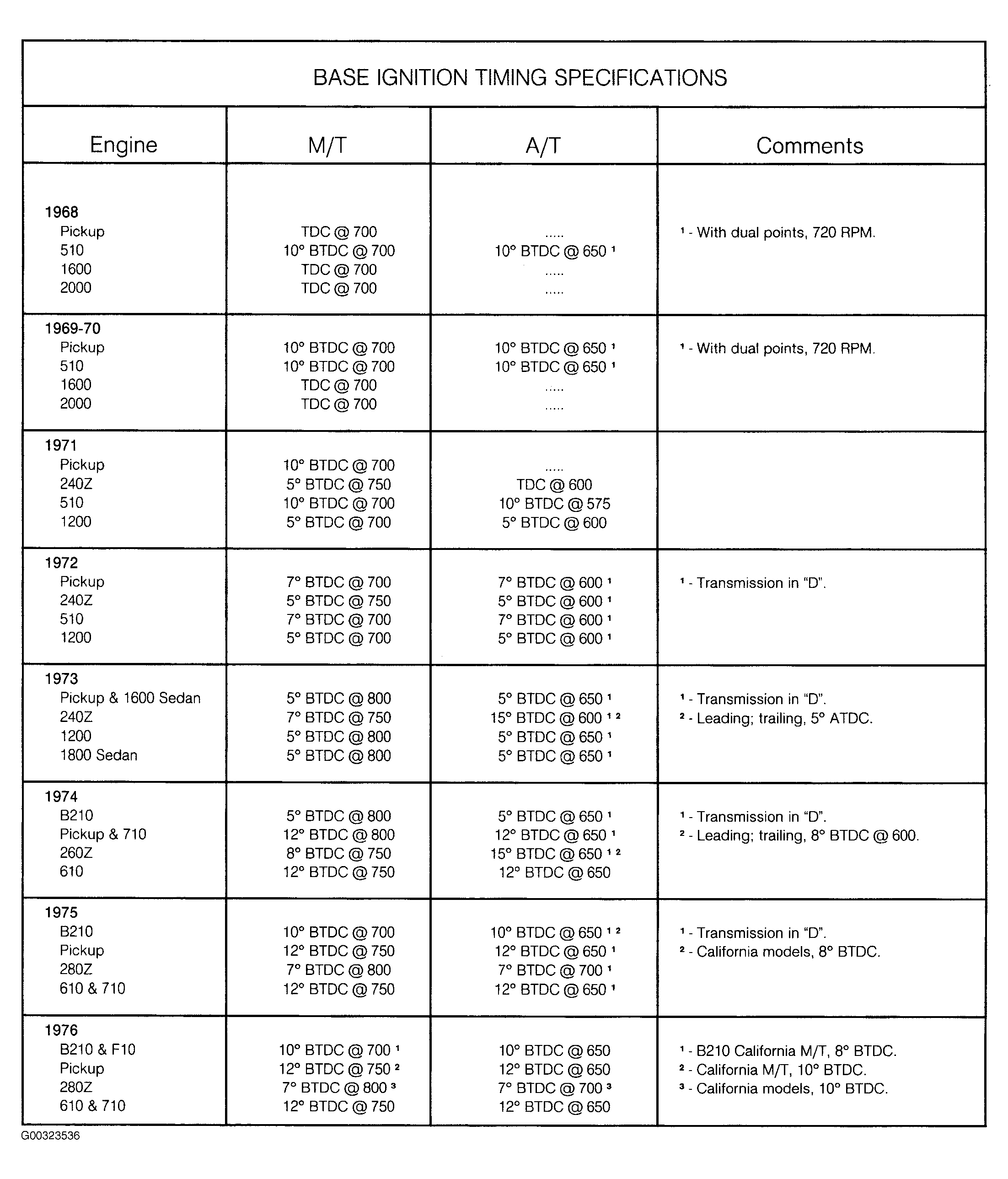

Fig 1:

G00323536

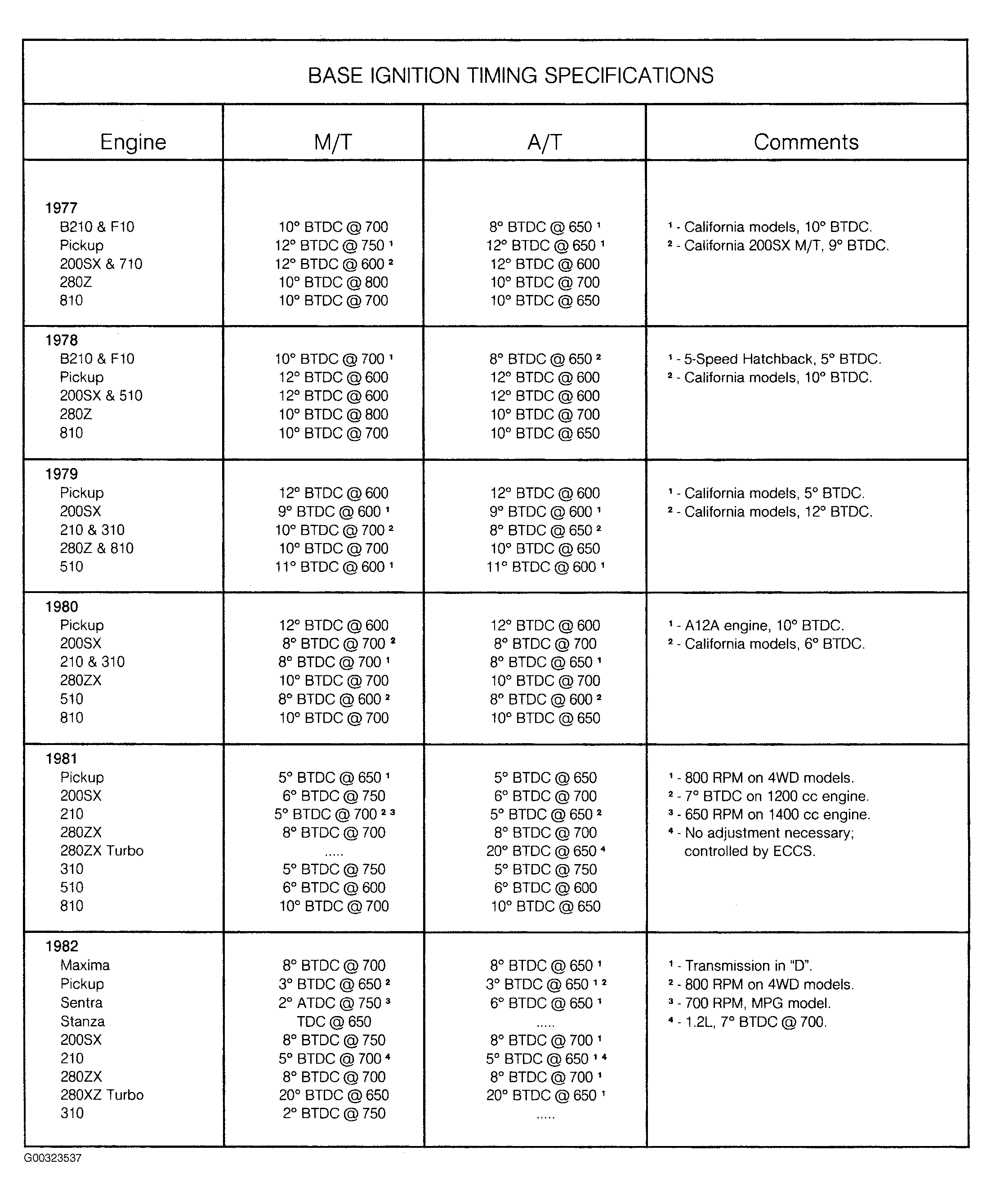

Fig 2:

G00323537

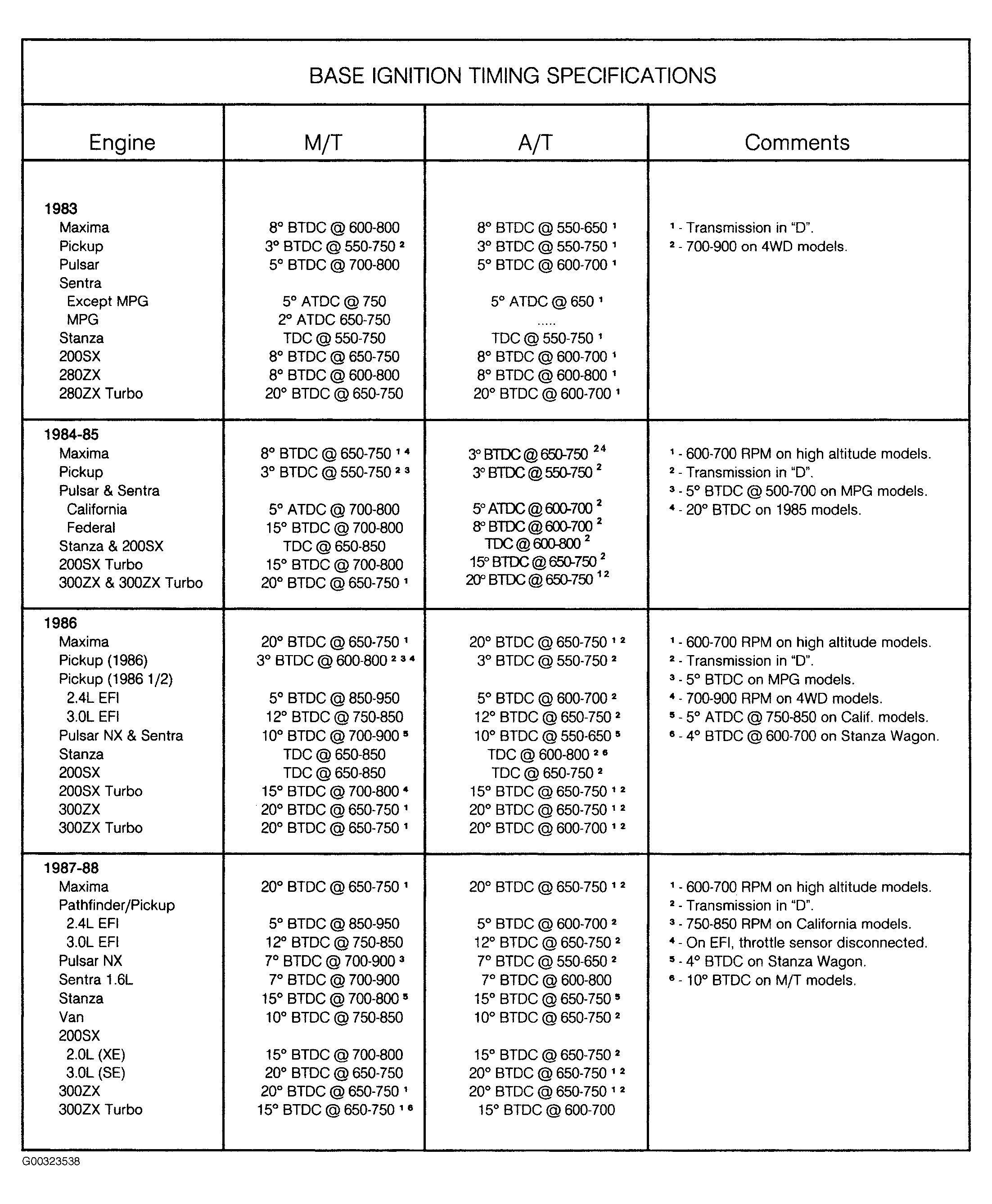

Fig 3:

G00323538

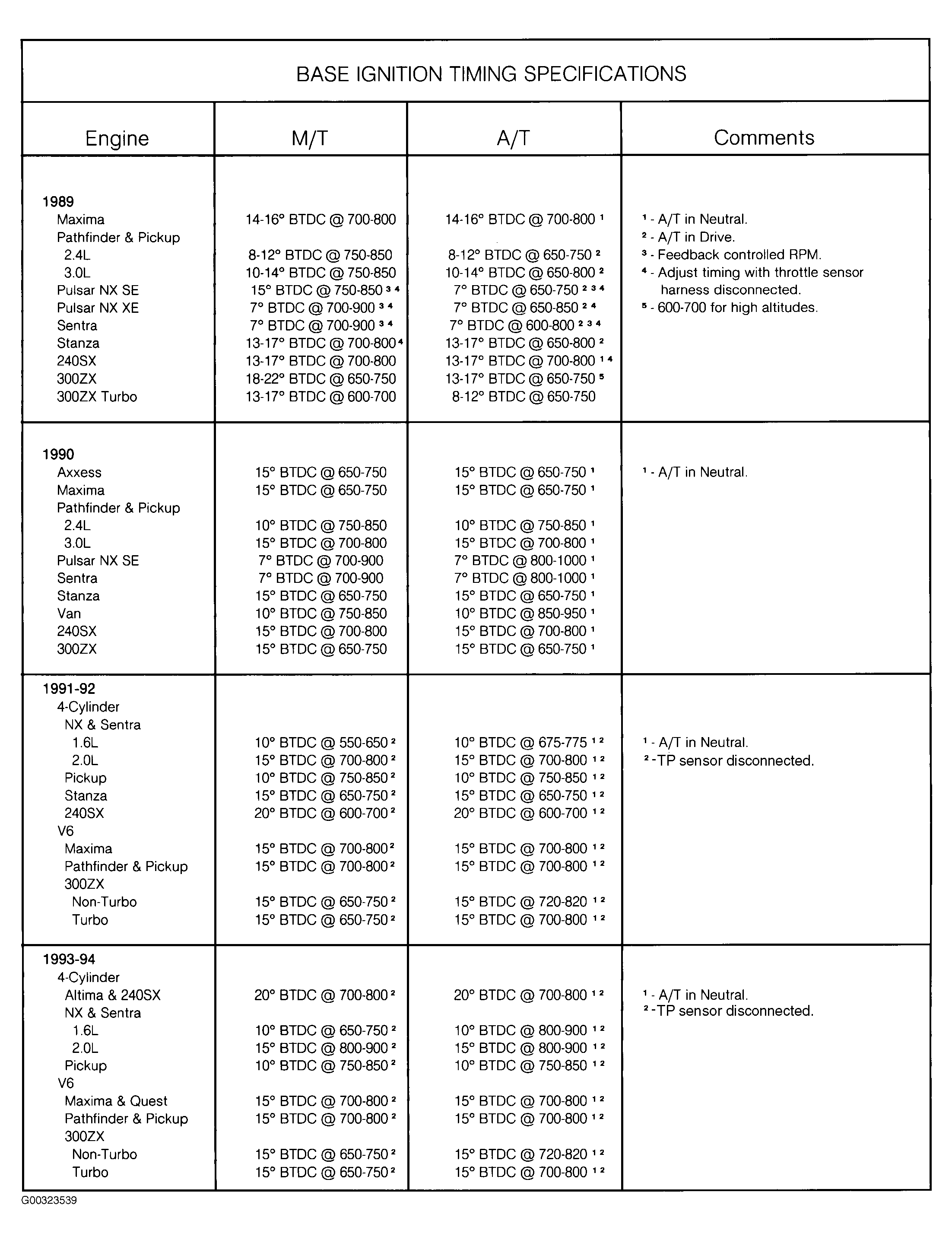

Fig 4:

G00323539

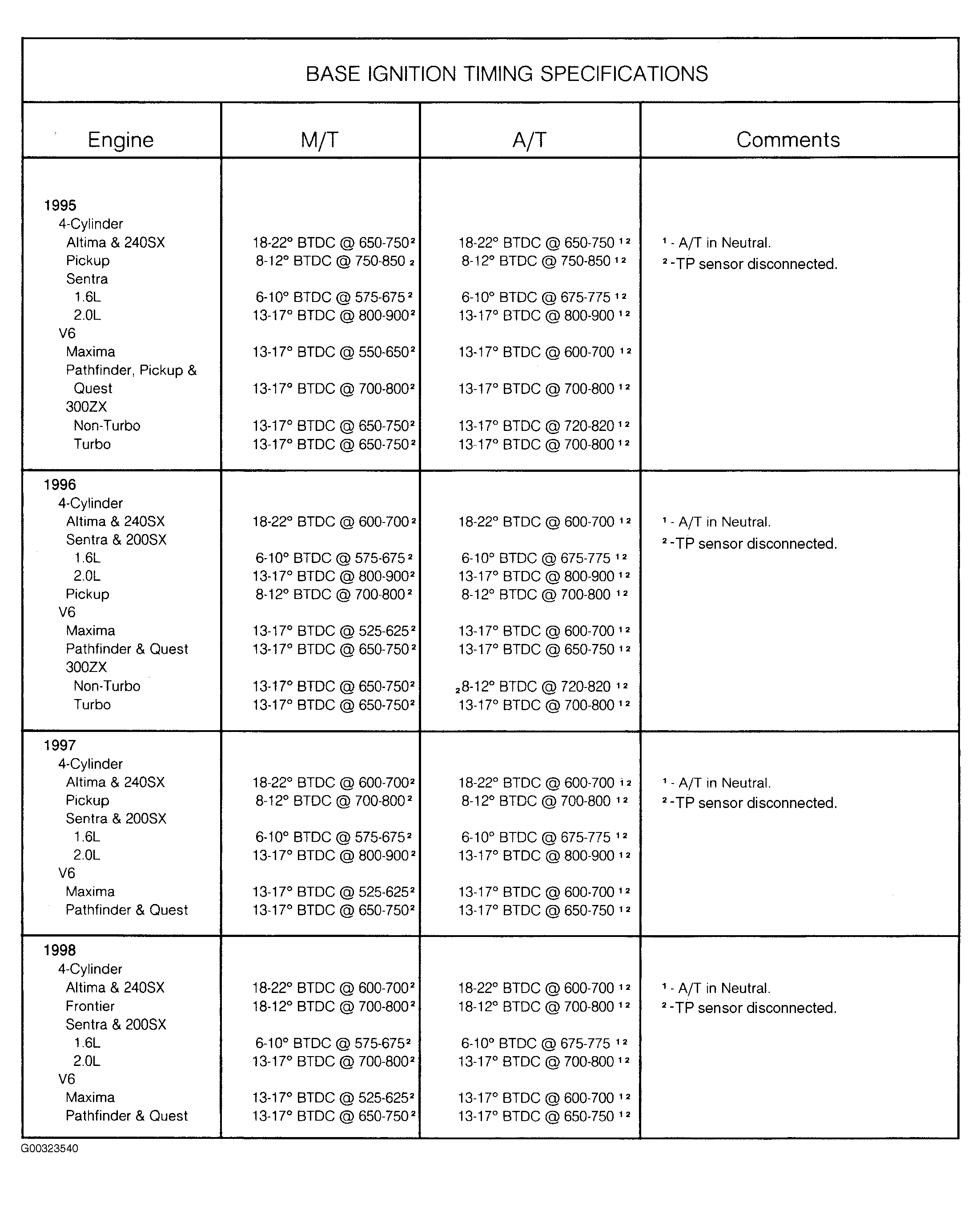

Fig 5:

G00323540

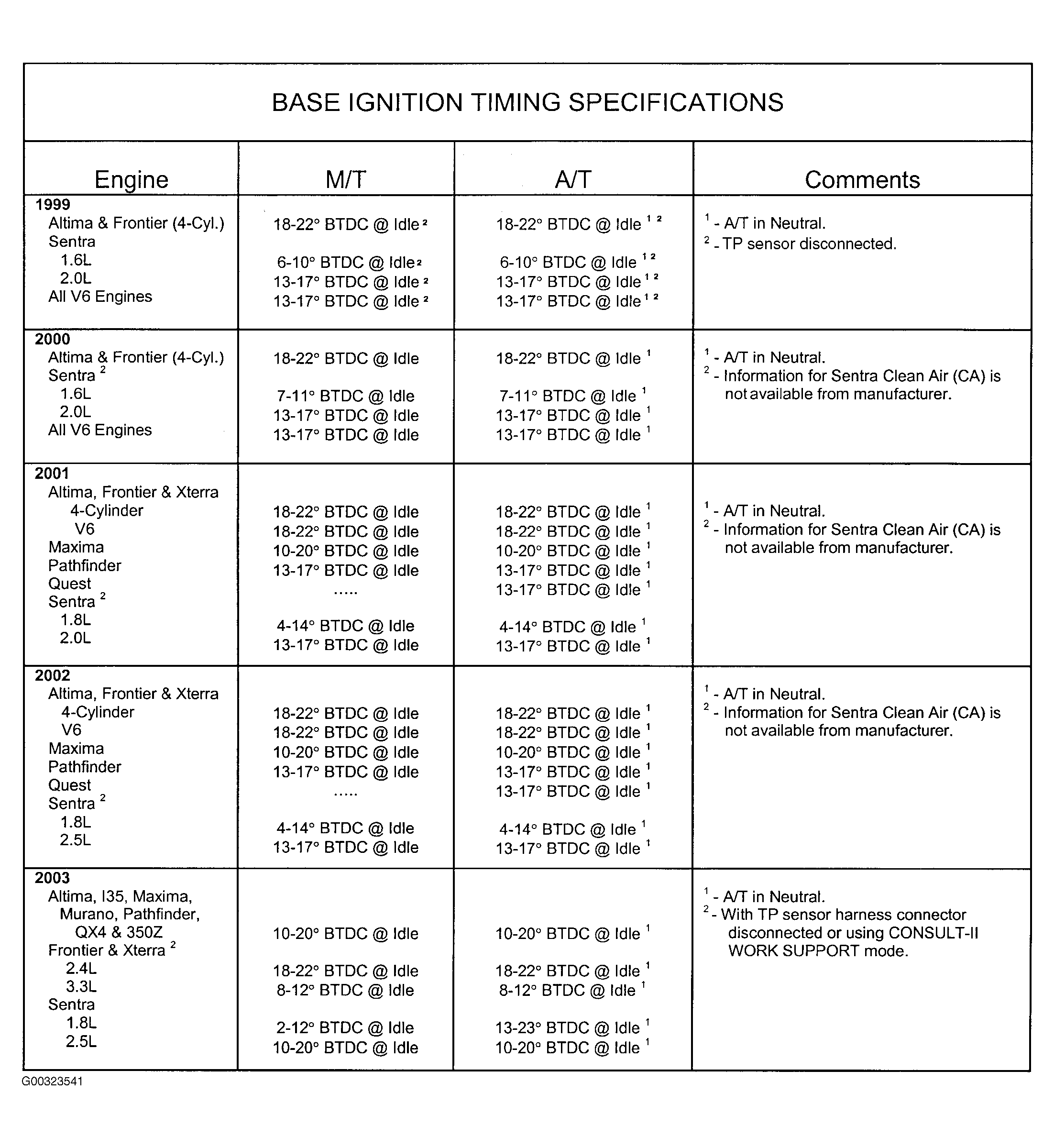

Fig 6:

G00323541

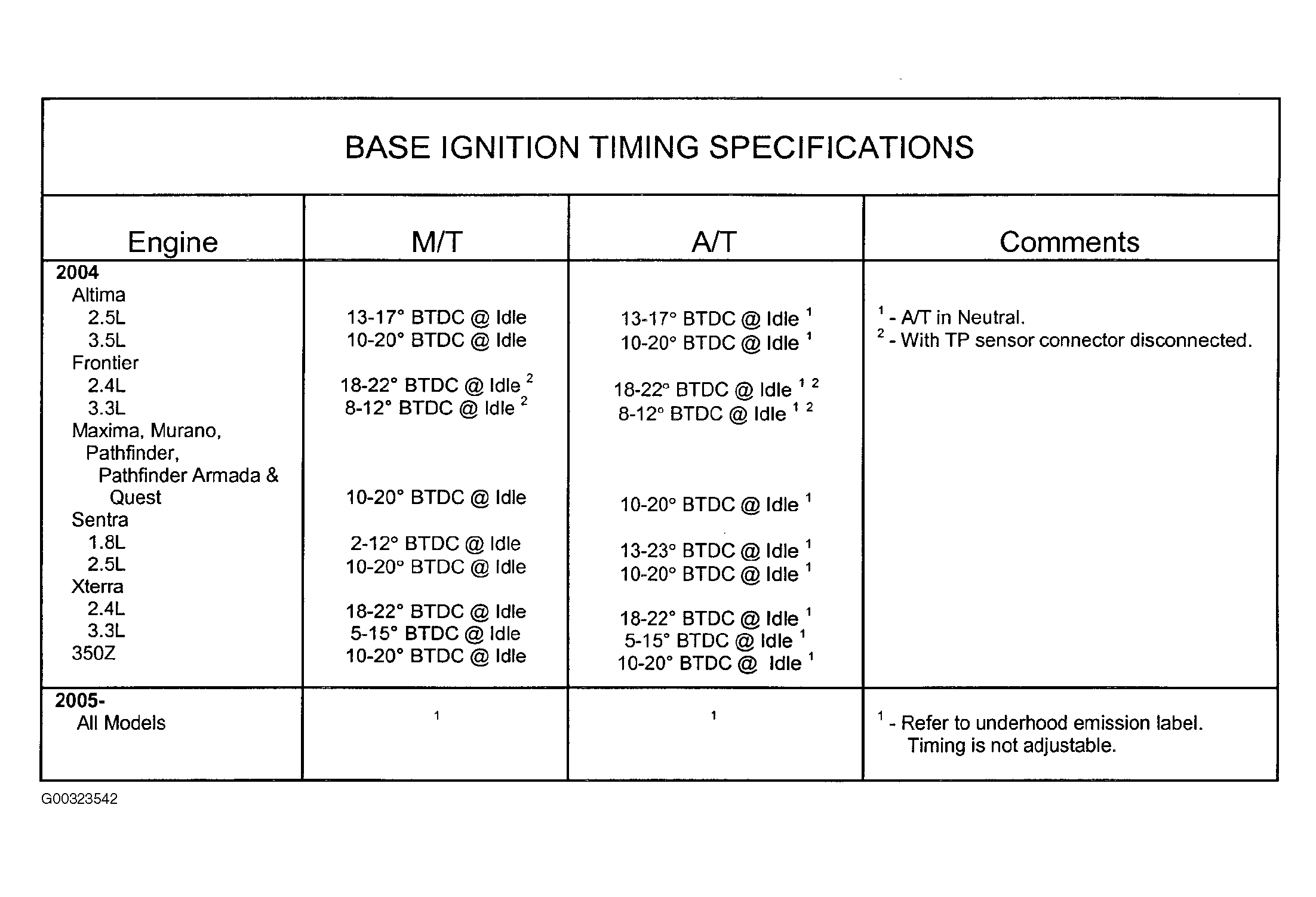

Fig 7:

G00323542
