Removal And Installation: Notes
CAUTION:
- When removing or installing the air flow sensor, be careful not to apply impact to the sensor.
- Do not reuse the air flow sensor that has been dropped.

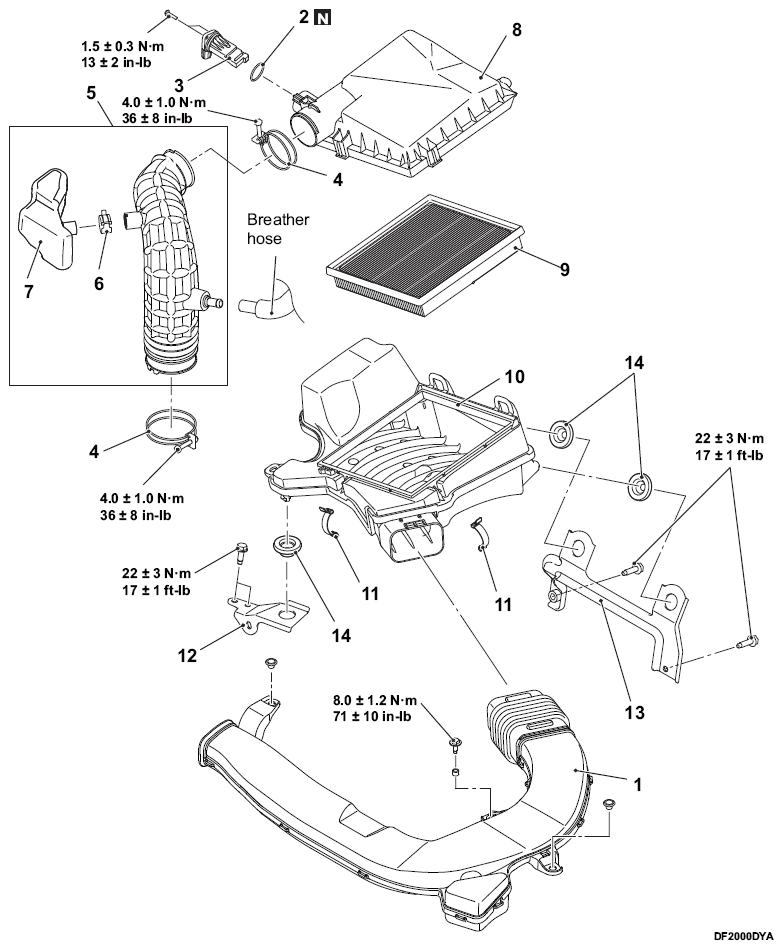

| Removal steps | |
|---|---|
| 1. Air cleaner intake duct | |
| 2. O-ring | |
| >>B<< | 3. Air cleaner air flow sensor |
| Breather hose connection (Refer to Engine Overhaul - Oil Pan, Timing Chain Case REMOVAL AND INSTALLATION ) | |
| 4. Air cleaner clamp | |
| 5. Air cleaner throttle body duct | |
| 6. Air cleaner (hose clip) clamp | |
| 7. Air cleaner resonator | |
| 8. Air cleaner cover | |
| 9. Air cleaner element | |
| >>A<< | 10. Air cleaner body assembly |
| 11. Air cleaner inner clamp | |
| 12. Air cleaner bracket front | |
| 13. Air cleaner bracket rear | |
| 14. Air cleaner support insulator | |
