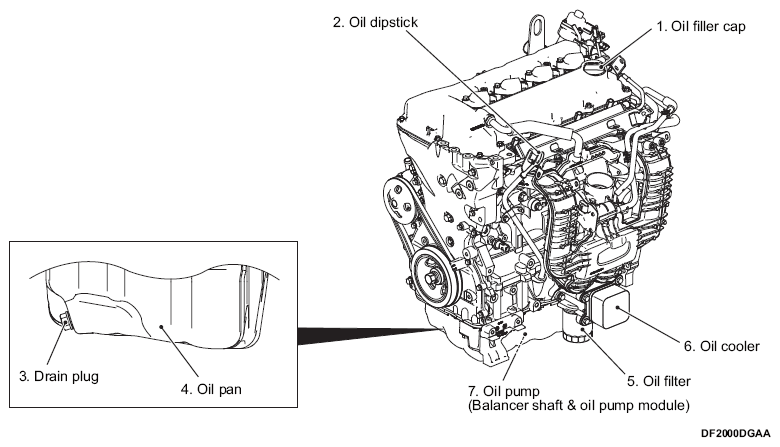

Lubrication Relation
- OIL FILLER CAP
- OIL DIPSTICK
- DRAIN PLUG
- OIL PAN
- The oil pan is made of sheet metal and contains an oil sump in the forward area of the engine.
FIPG (Formed-In-Place Gasket) is used to seal between the oil pan and the ladder frame.
NOTE: FIPG is the abbreviation for Formed-In-Place Gasket.
- The oil pan is made of sheet metal and contains an oil sump in the forward area of the engine.
- OIL FILTER
- The oil filter is installed on the left side of the ladder frame.
- OIL COOLER
- A water-cooled oil cooler has been adopted.
- OIL PUMP
- The oil pump has been mounted inside the oil pan on the bottom side of the rubber frame as a balancer shaft-oil pump module that is integrated with the balancer shaft (Refer to Engine, Engine Mechanical - Description - Base Engine BALANCER RELATION ).
