Removal And Installation: Notes

Pre-removal Operation	Post-installation Operation
Engine Room Under Cover Front A, B Removal (Refer to UNDER COVER ). Engine Coolant Draining (Refer to On-vehicle Service, ENGINE COOLANT CHANGE ). Engine Oil Filter Removal (Refer to ENGINE OIL CHANGE ).	Engine Oil Filter Installation (Refer to ENGINE OIL CHANGE ). Engine Coolant Refilling (Refer to On-vehicle Service, ENGINE COOLANT CHANGE ). Engine Room Under Cover Front A, B Installation (Refer to UNDER COVER ).

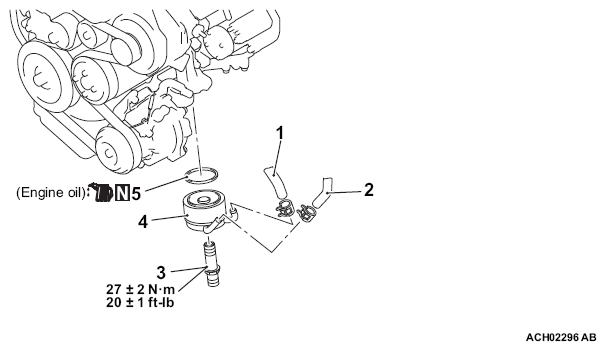

Fig 1: Removing/Installing Engine Oil Cooler Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Removal steps
	1.	Water return hose connection
	2.	Water feed hose connection
>>A<<	3.	Engine oil cooler bolt
>>A<<	4.	Engine oil cooler assembly
>>A<<	5.	Engine oil cooler gasket
