Removal And Installation: Notes
CAUTION:
After the installation, perform a calibration for the ASC-ECU to learn the steering wheel sensor neutral point (Refer to - On-vehicle Service, STEERING WHEEL SENSOR CALIBRATION
).
Pre-removal and Post-installation Operation
- Steering Wheel Straight-ahead Position Check

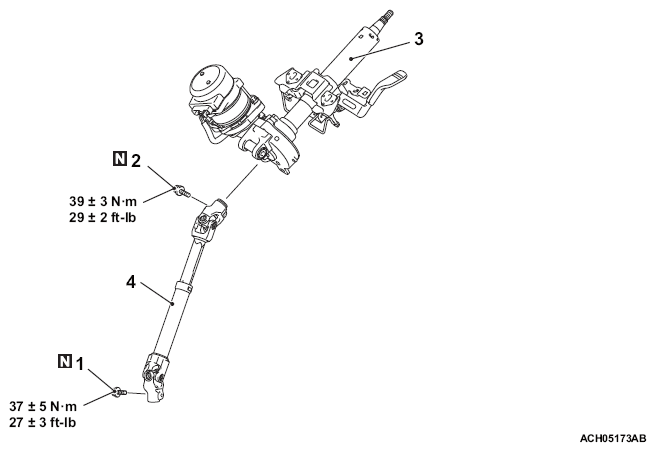

Fig 1: Removing/Installing Intermediate Shaft Assembly Components Location With Torque Specification
| Removal steps | ||
|---|---|---|
| >>A<< | 1. | Steering column bolt (Steering column shaft assembly and steering gear and linkage connection) |
| >>A<< | 2. | Steering column bolt (Intermediate shaft assembly and steering column connection) |
| 3. | Steering shaft sub assembly | |
| 4. | Intermediate shaft assembly | |
