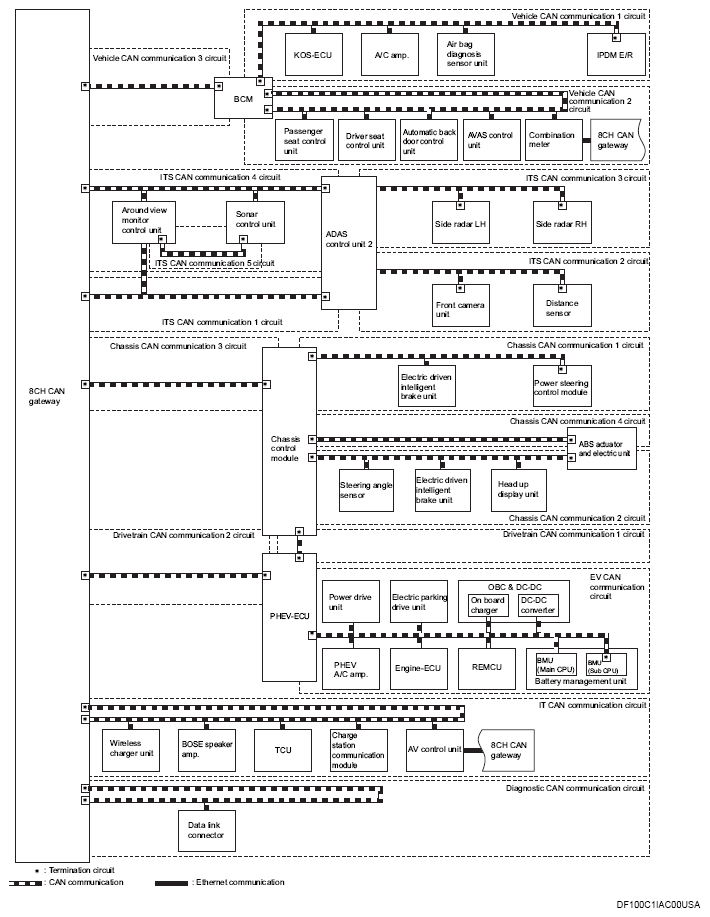

System Diagram

WARNING: This page is about a different car, the 2023 Mitsubishi Outlander PHEV. However, it is still accessible from the selected car via links, so may be relevant.
G16316586Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
