CAN Communication Control Circuit
WARNING: This page is about a different car, the 2023 Mitsubishi Outlander PHEV. However, it is still accessible from the selected car via links, so may be relevant.

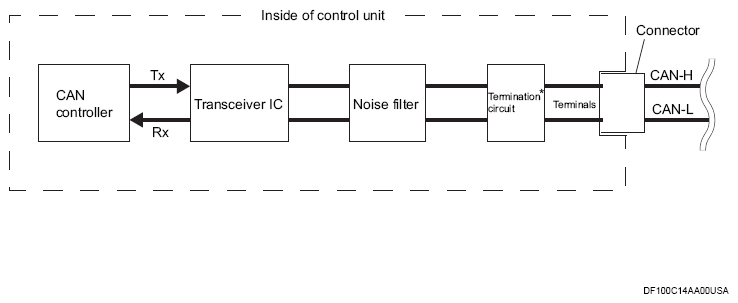

| Component | System description |
|---|---|
| CAN controller | It controls CAN communication signal transmission and reception, error detection, etc. |
| Transceiver IC | It converts digital signal into CAN communication signal, and CAN communication signal into digital signal. |
| Noise filter | It eliminates noise of CAN communication signal. |
| Termination circuit, refer to (1) (Resistance of approx. 120 Ω) | It produces potential difference. |
| (1) - These are the only control units wired with both ends of CAN communication system. | |
