Removal And Installation: Notes

CAUTION:
  • When removing or installing the air flow sensor, be careful not to apply impact to the sensor.
  • Do not reuse the air flow sensor that has been dropped.

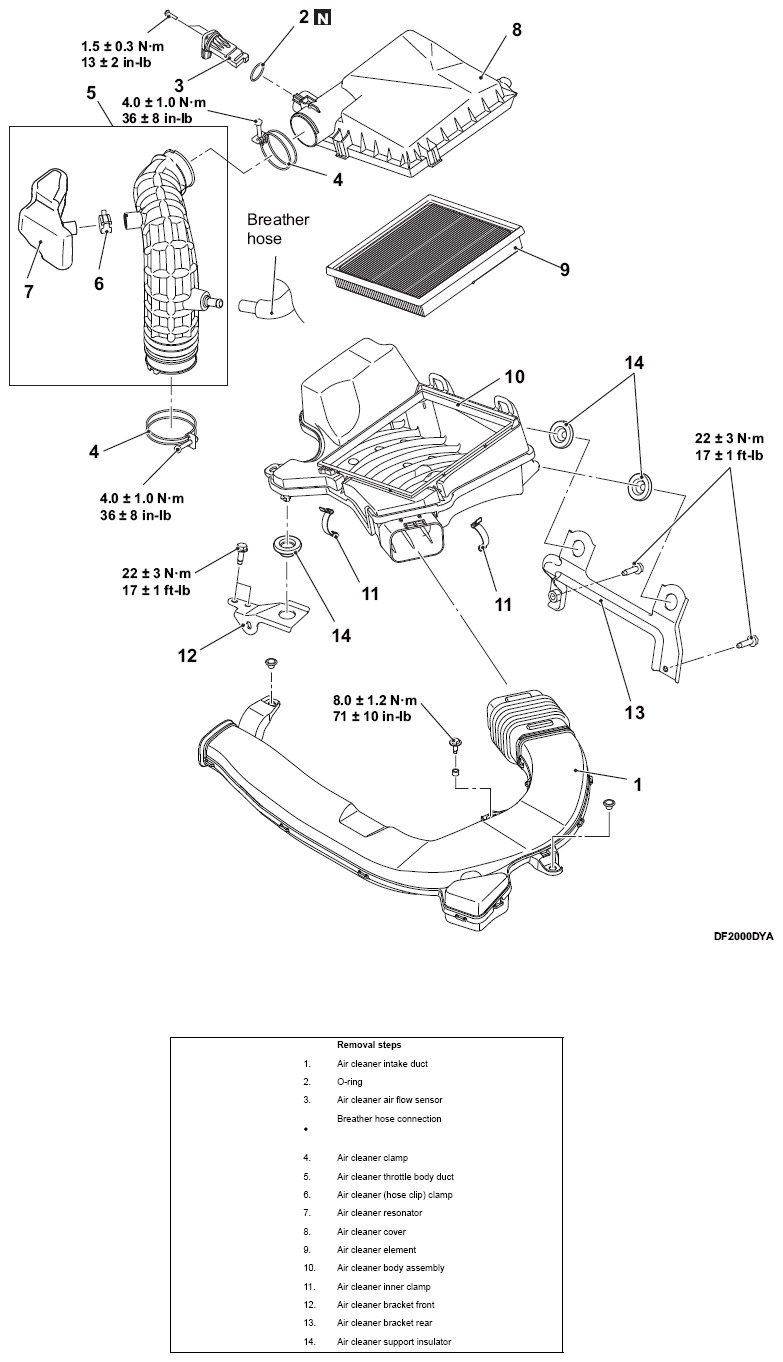

Fig 1: Removing/Installing Air Cleaner Components Location With Torque Specification
G16311842Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
