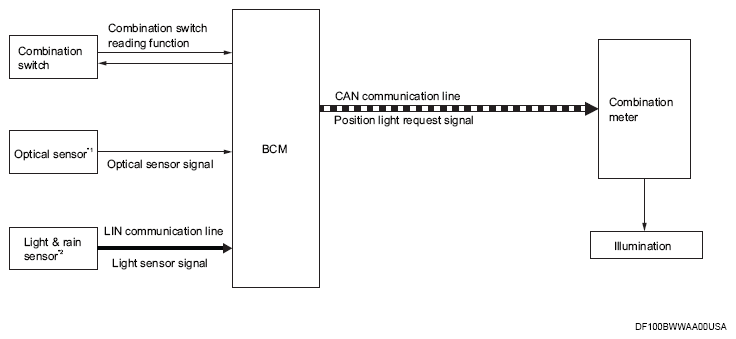

System Diagram
WARNING: This page is about a different car, the 2024 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
|
| Component |
Function |
| Combination switch |
Inputs the each switch condition signal to BCM. |
| Optical sensor |
The optical sensor outputs voltage signals to the BCM according to the brightness of the ambient light. |
| Light & rain sensor |
The light & rain sensor signals to the BCM according to the brightness of the ambient light. |
| BCM |
- Detects each switch condition by the combination switch reading function.
- Inputs the optical sensor signal from optical sensor.
- Inputs the light & rain sensor signal from light & rain sensor.
- Outputs the position light request signal to combination meter.
|
| Combination meter |
Turns ON/OFF the illuminations according to the request from BCM. |
