On-Vehicle Service: Calibration: Notes

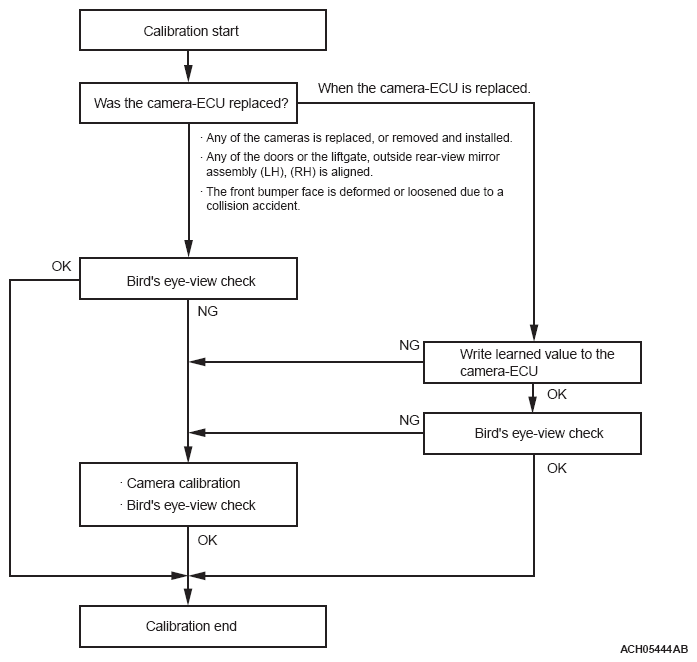

Calibrate according to the procedure below after the following operation is performed:

• Replacement of the camera-ECU
• Removal and installation/replacement of a camera
• Any of the door or the liftgate, Door mirror assembly (LH), (RH) is aligned.
• The front bumper face is deformed or loosened due to a collision accident.

  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
