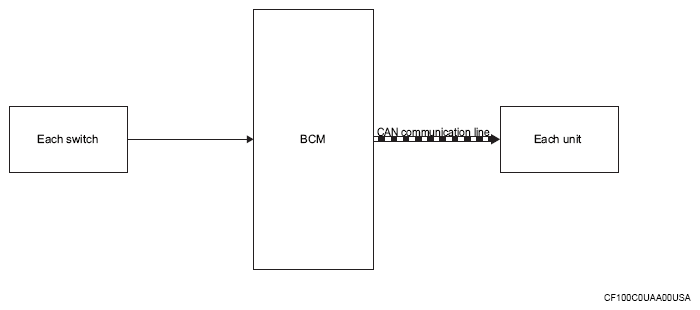

System Diagram
WARNING: This page is about a different car, the 2024 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
|
NOTE:
AUTO light switch is not applicable. (For Canada models)
 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
|
| Parts name |
System description |
| Each switch (sensor) |
Outputs the each signal to BCM. |
| BCM |
BCM has the signal transmission function that outputs/transmits each input/received signal to each unit. |
| Each unit |
Inputs the each signal from BCM. |
