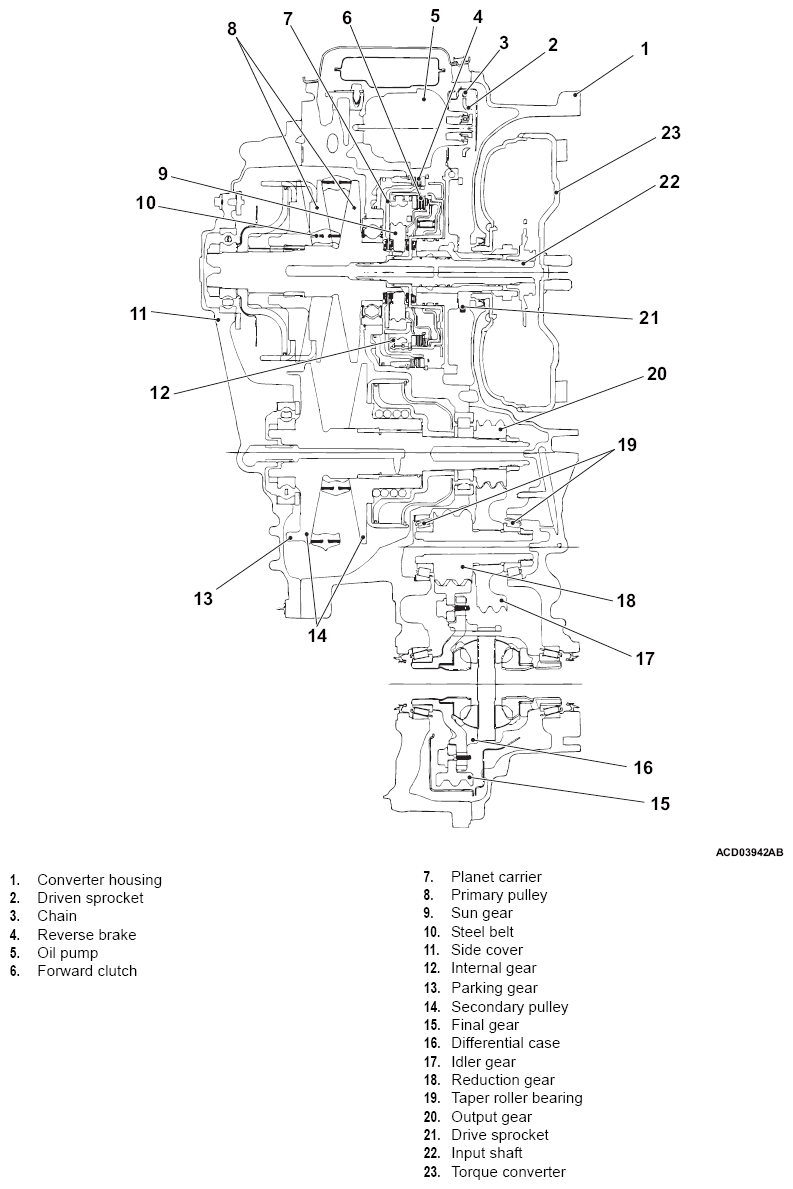

Home >> Mitsubishi >> 2022 >> Eclipse Cross ES, AWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Continuously Variable Transmission (CVT) >> General Information >> Overview >> Description Of Structure And Operation >> Sectional View
