Removal And Installation: Notes

WARNING: This page is about a different car, the 2020 Mitsubishi Outlander PHEV. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Disconnect the battery (-) terminal and wait for 60 seconds or more before starting work. Insulate the disconnected (-) terminal by wrapping a tape.
Handle the front impact sensor with sufficient caution, and do not drop the sensor or allow contact with water, oil, or others. If a dent, crack, deformation and others are discovered, replace it with a new one.
The parts indicated by * indicates parts which should be temporarily tightened, and then fully tightened with the vehicle standing on the ground and the curb weight condition.

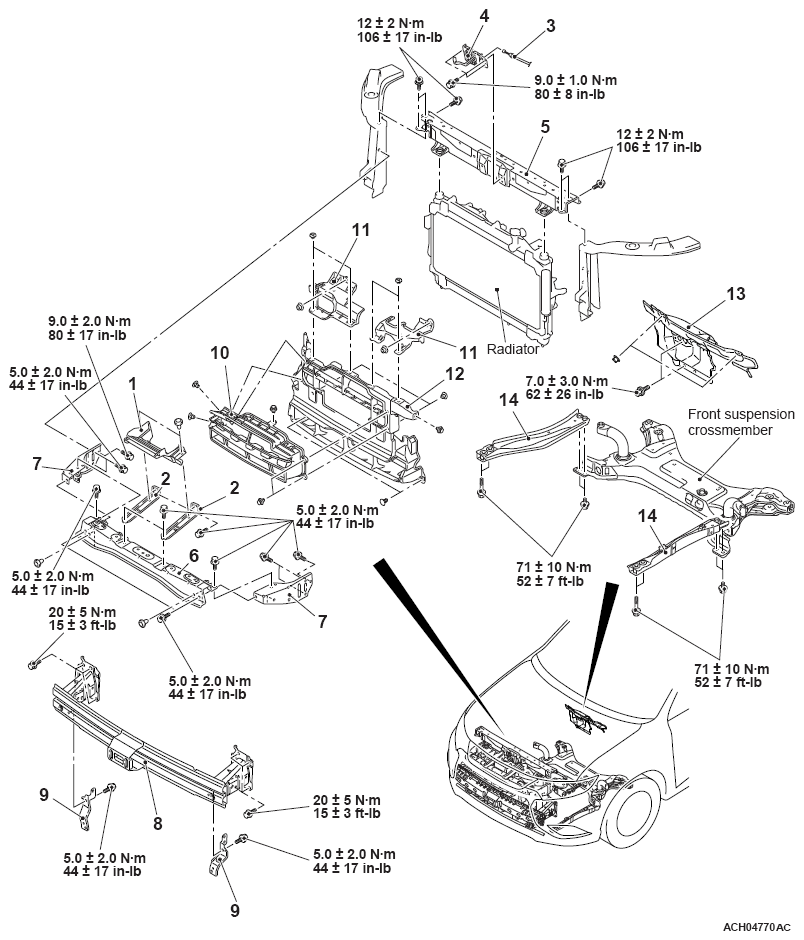

Fig 1: Removing/Installing Loose Panel Components With Torque Specification (1 Of 1)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

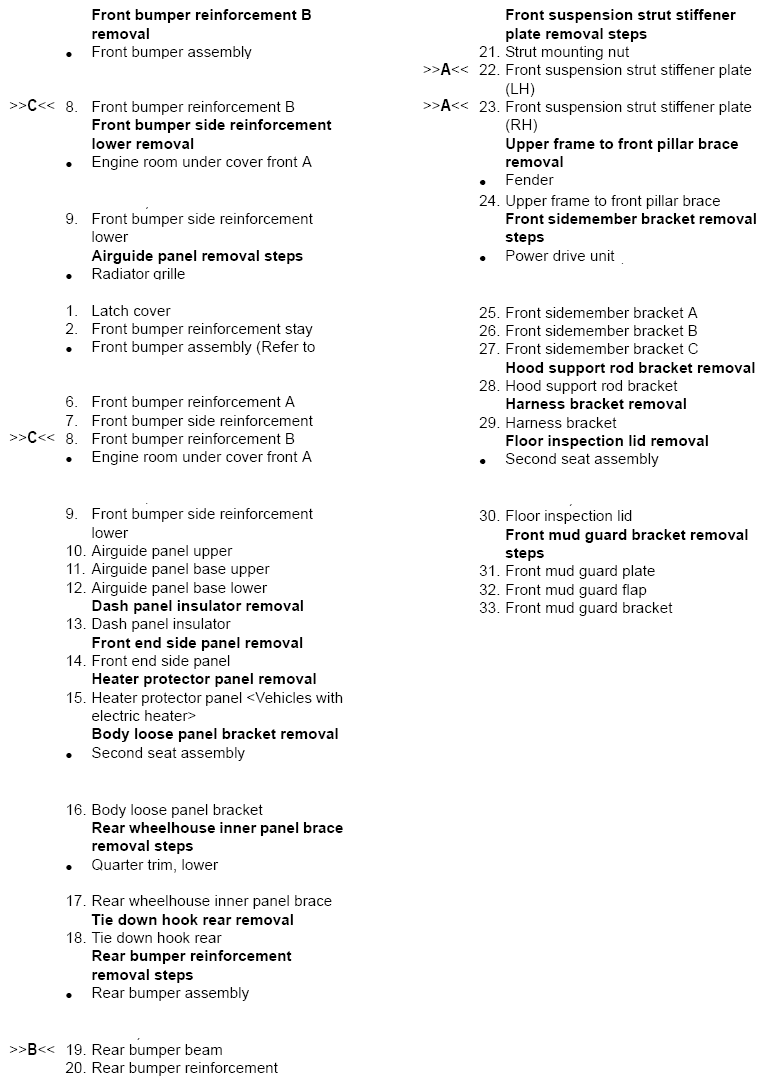

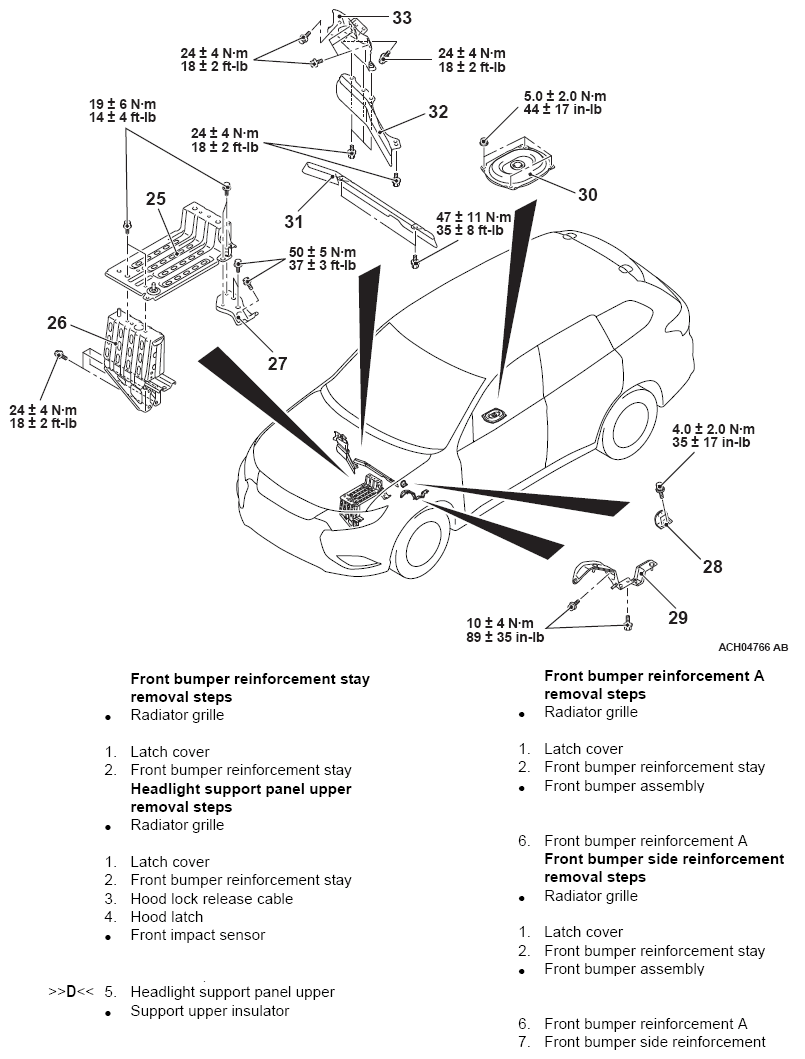

Fig 2: Removing/Installing Loose Panel Components With Torque Specification (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

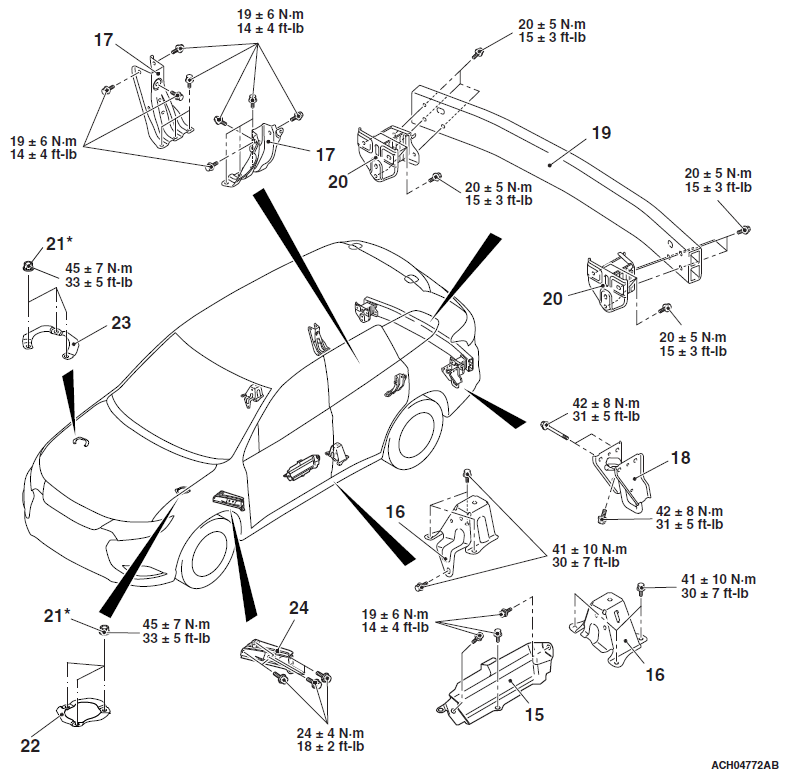

Fig 3: Removing/Installing Loose Panel Components With Torque Specification (3 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
