Removal And Installation: Notes

WARNING: This page is about a different car, the 2020 Mitsubishi Outlander PHEV. However, it is still accessible from the selected car via links, so may be relevant.

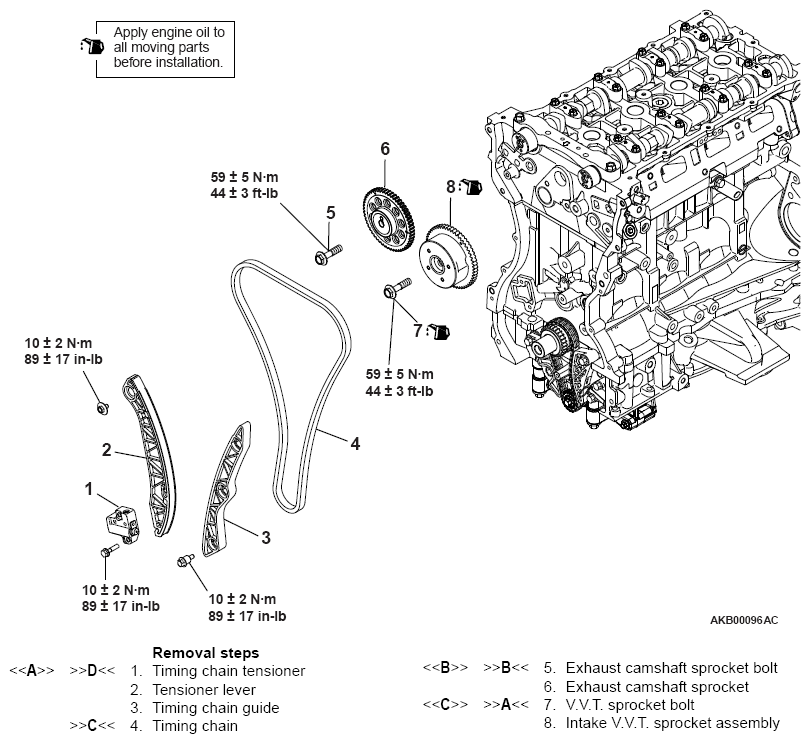

Fig 1: Removing/Installing Timing Chain Components With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
