Removal And Installation: Notes

WARNING: This page is about a different car, the 2020 Mitsubishi Outlander PHEV. However, it is still accessible from the selected car via links, so may be relevant.

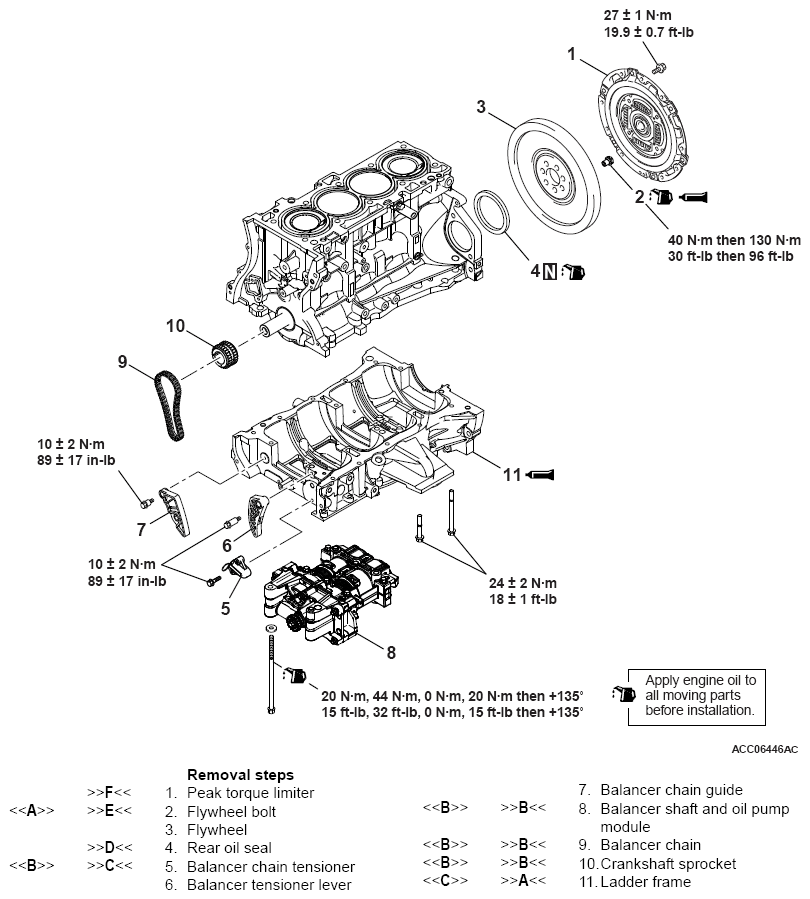

Fig 1: Removing/Installing Balancer Chain Components With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MD998781: Flywheel Stopper
MB991614: Angle Gauge
MD998718: Rear Oil Seal Installer
