Notes

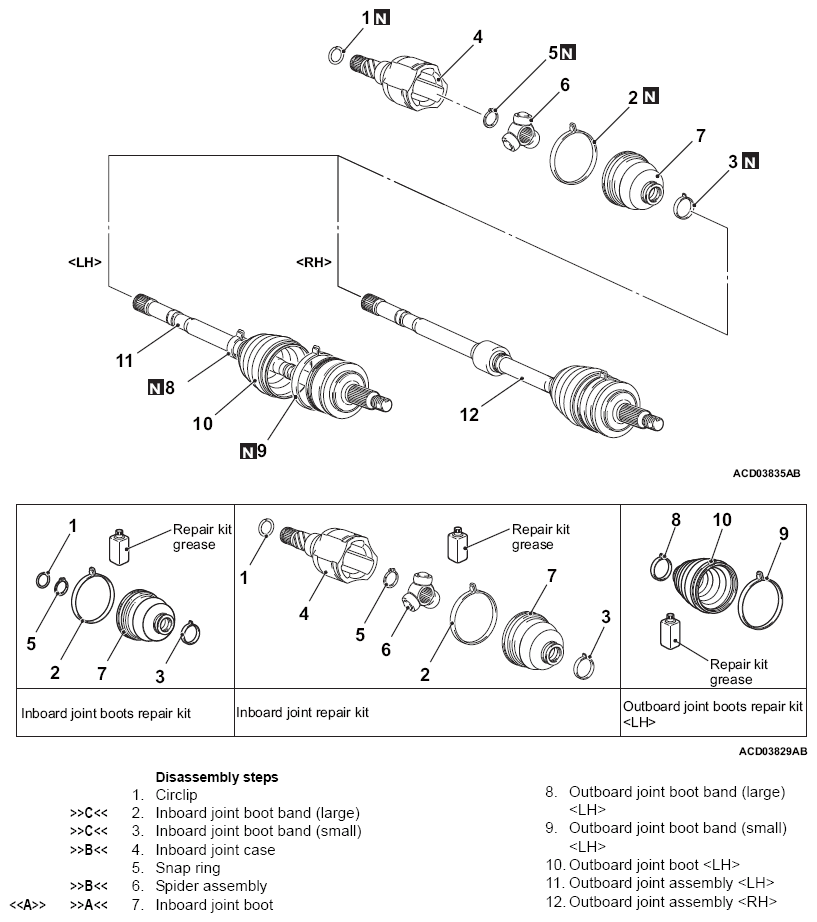

Disassembly And Reassembly: Notes
CAUTION:
The outboard joint assembly <RH> cannot be disassembled.
