Section 1 (Clutch)
>>
Clutch Control
>>
Removal And Installation
>>
Notes
Removal And Installation: Notes
WARNING:
This page is about a different variant/trim than selected.
Pre-removal operation
Loosen the Clutch Cable (Transaxle Side) Adjusting Nut as Far as Possible.
Instrument Panel Lower Cover Removal (Refer to
REMOVAL AND INSTALLATION
).
Knee Air Bag Module Removal (Refer to
REMOVAL AND INSTALLATION
).
Post-installation operation
Knee Air Bag Module Installation (Refer to
REMOVAL AND INSTALLATION
).
Instrument Panel Lower Cover Installation (Refer to
REMOVAL AND INSTALLATION
).
Clutch Pedal Adjustment (Refer to
CLUTCH PEDAL CHECK AND ADJUSTMENT
).

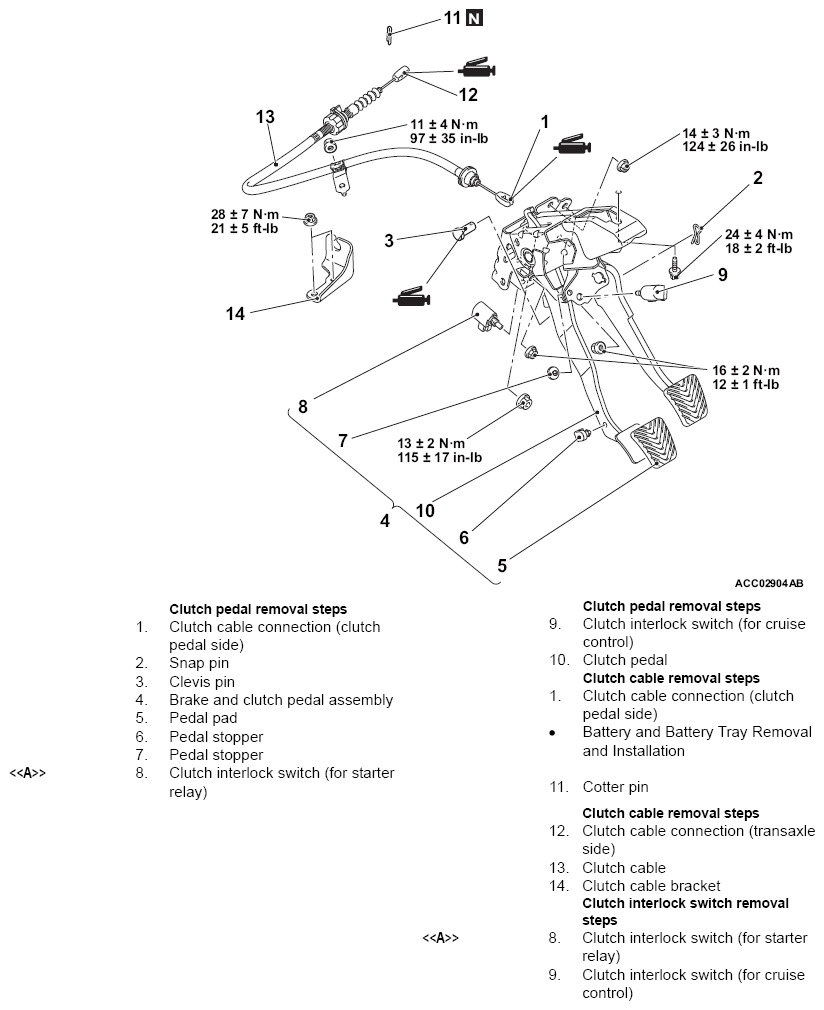

Fig 1: Removing/Installing Clutch Control Components Location With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
