Automatic Transaxle On Vehicle Service (With Diagnostics)
>>
Transaxle Control
>>
Removal And Installation
Removal And Installation
Pre-removal and post-installation operation
Transmission range switch and control cable adjustment check (Refer to
TRANSMISSION RANGE SWITCH AND CONTROL CABLE ADJUSTMENT
.)
Selector lever operation check (Refer to
ELECTRONIC CONTROL COUPLING SOLENOID (CENTER) CHECK <VEHICLES WITH S-AWC>
.)

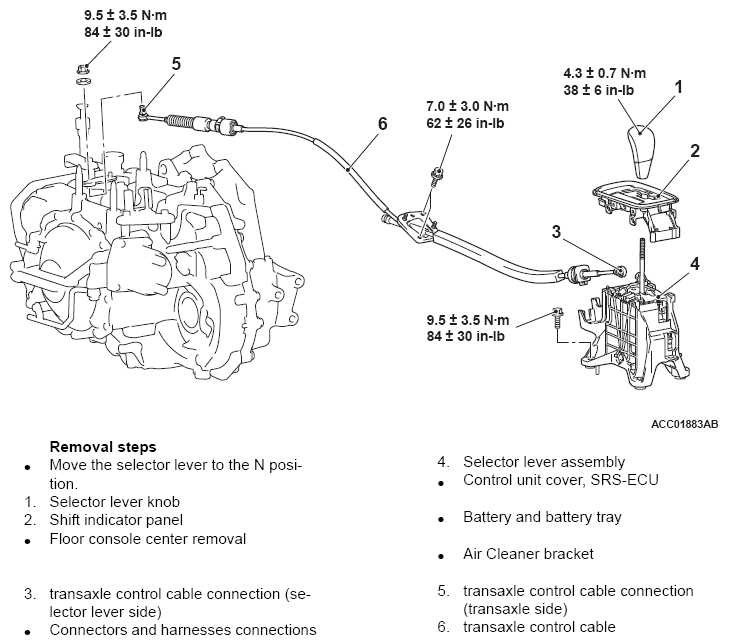

Fig 1: Removing/Installing Transaxle Control Components Location With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
