Disassembly And Reassembly: Notes

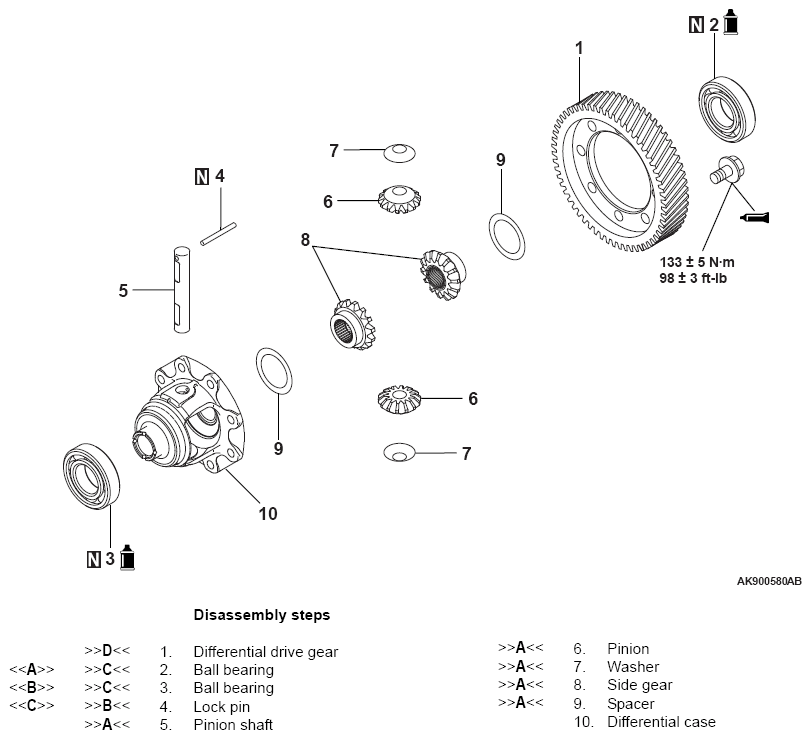

Fig 1: Disassembling/Assembling Differential Components With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required special tools:

• MD998917: Bearing remover
• MD998812: Installer cap
• MD998813: Installer (100)
• MD998820: Installer adapter
