Home >> Mitsubishi >> 2020 >> Eclipse Cross LE, AWD >> Repair and Diagnosis >> Drivelines & Axles >> Wheel Hubs >> Front Axle >> Driveshaft Assembly >> Front Axle Driveshaft Assembly >> Notes

Front Axle Driveshaft Assembly: Notes

CAUTION: As for the outboard joint assembly, only the outboard joint boot can be replaceable, and other parts cannot be disassembled.

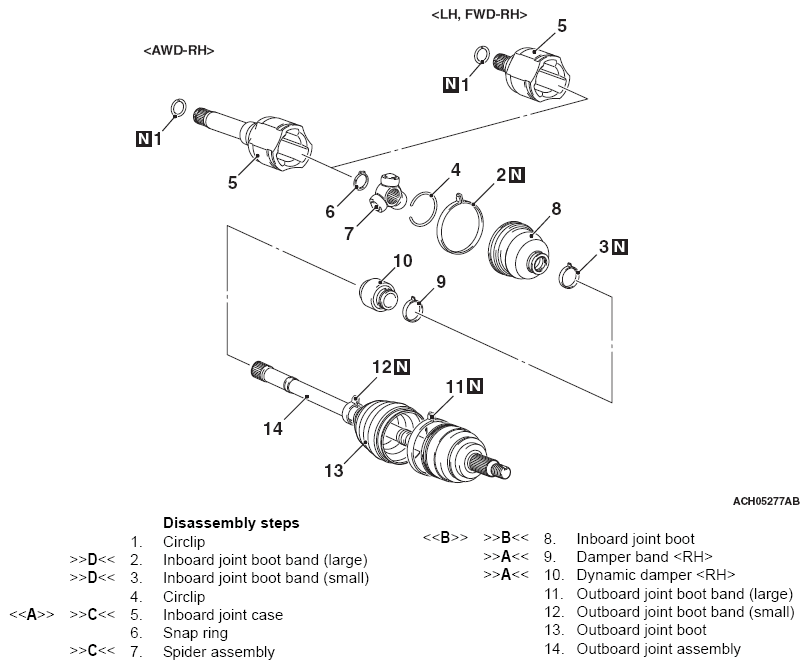

G13323751Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
