Notes
Removal And Installation: Notes
Post-installation operation
Transmission range switch and control cable adjustment check (Refer to
TRANSMISSION RANGE SWITCH AND CONTROL CABLE ADJUSTMENT
.)
Selector lever operation check (Refer to
SELECTOR LEVER ASSEMBLY CONTINUITY CHECK
.)

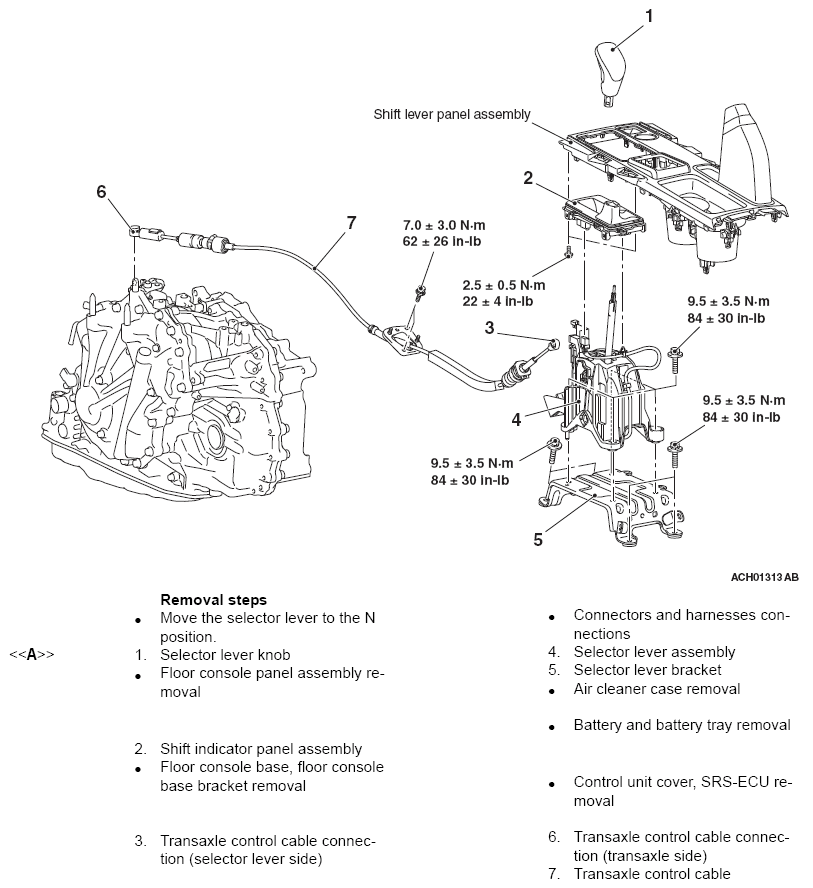

Fig 1: Removing/Installing Transaxle Control Components Location With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
