Home
>>
Mitsubishi
>>
2020
>>
Eclipse Cross ES, AWD
>>
Repair and Diagnosis
>>
Restraints
>>
Passive Restraints
>>
Interior
>>
Instrument Lower Panel
>>
Removal And Installation
Removal And Installation

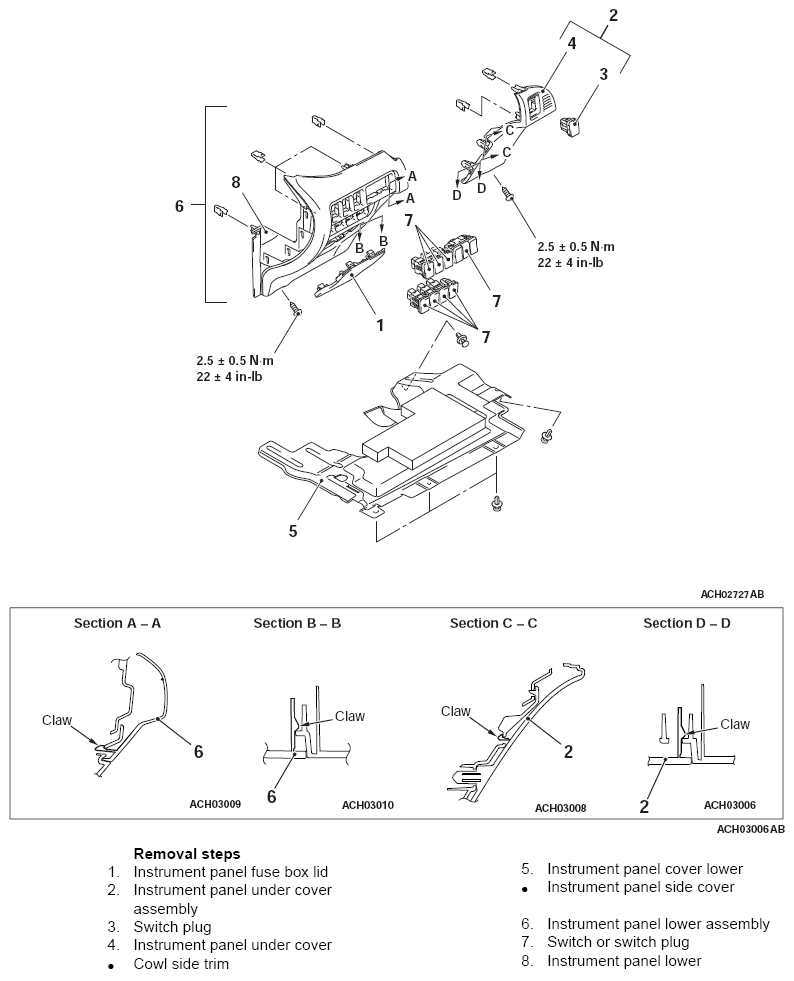

Fig 1: Removing/Installing Instrument Lower Panel Components Location With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
