Controller Area Network (Can)

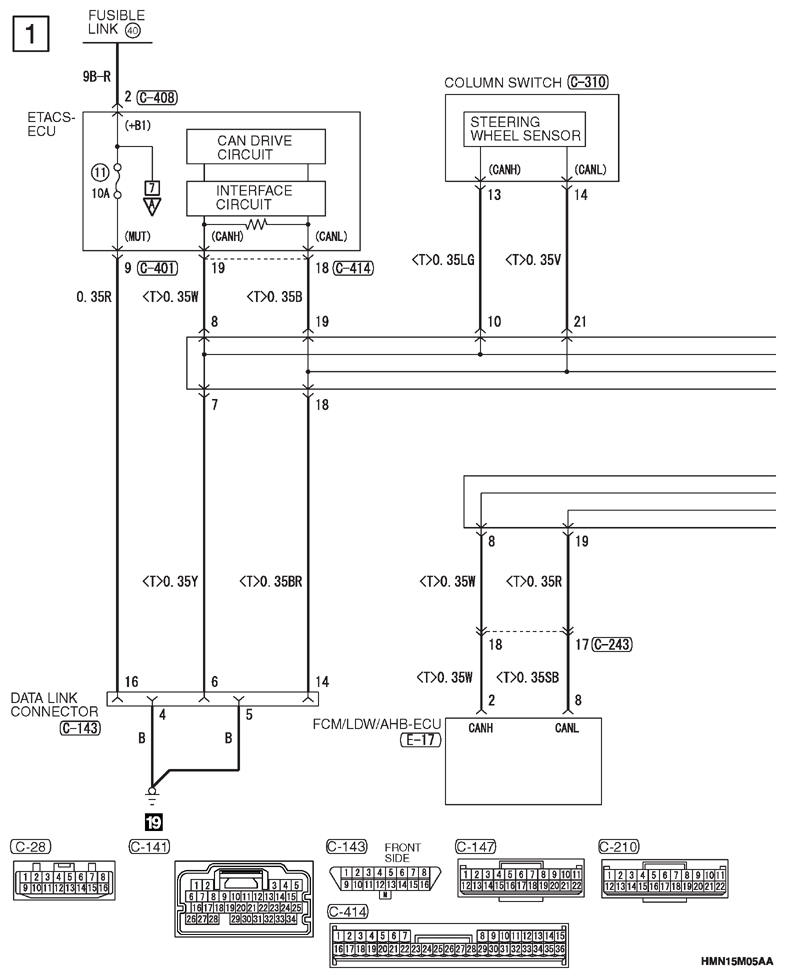

G13326193Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

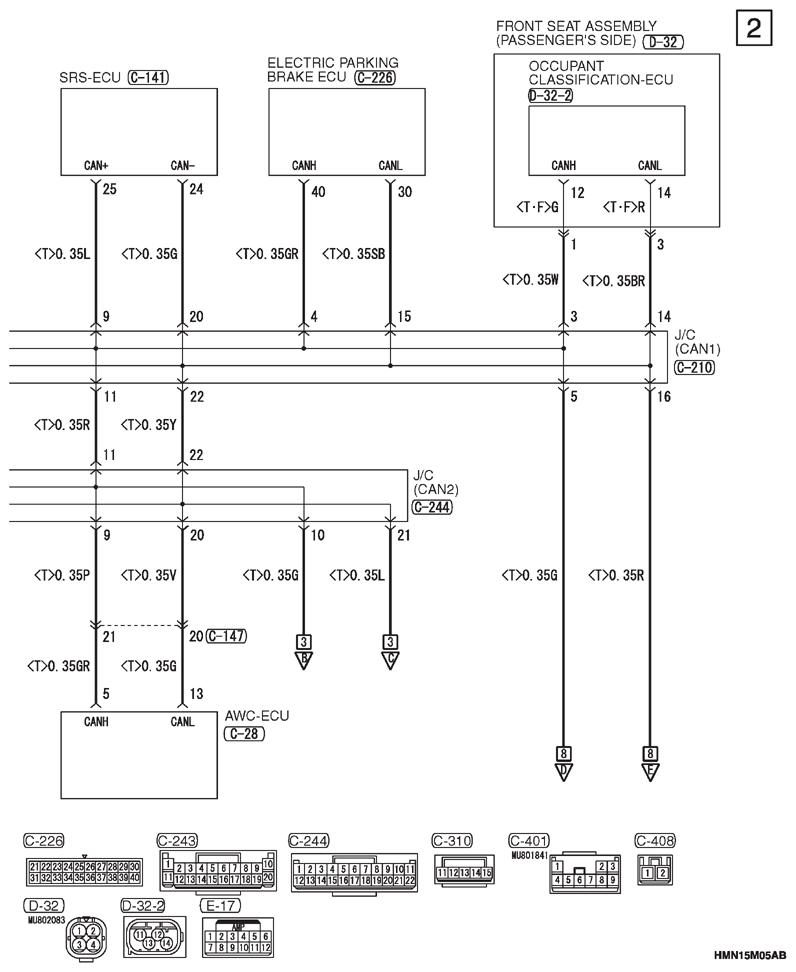

G13326194Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

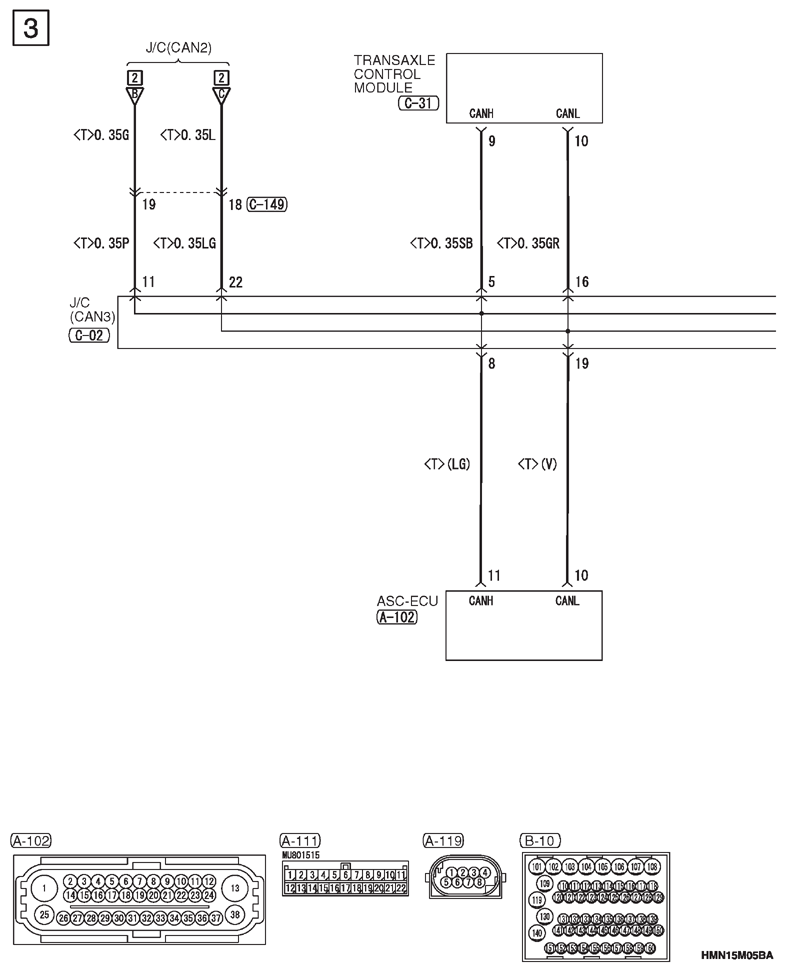

G13326195Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

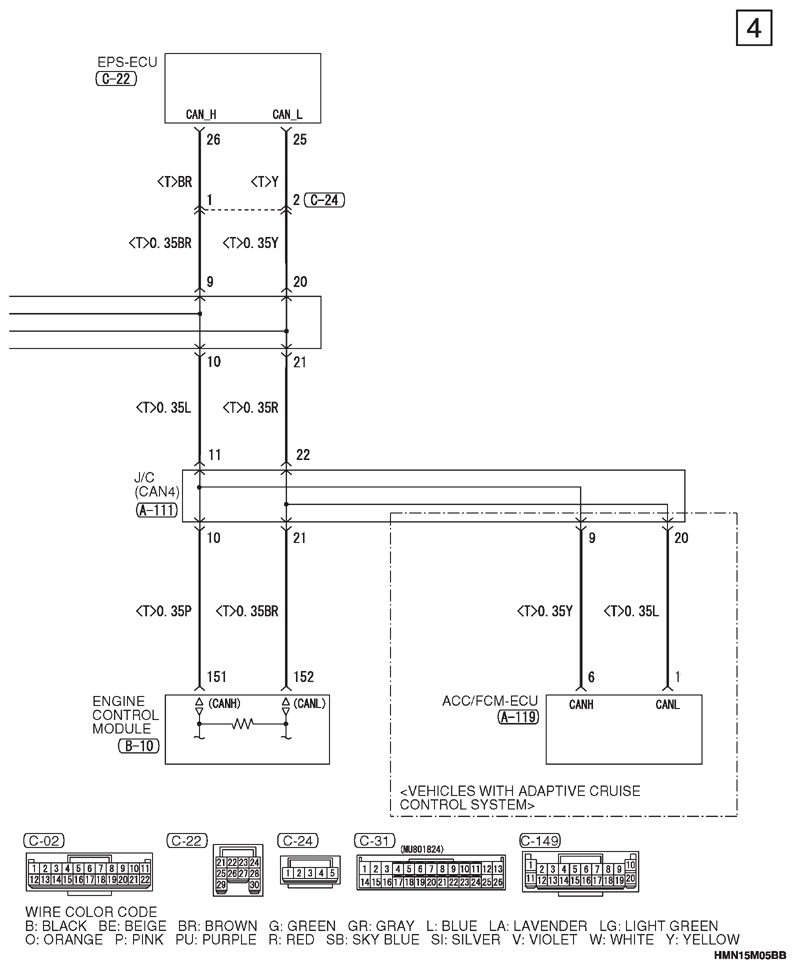

G13326196Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

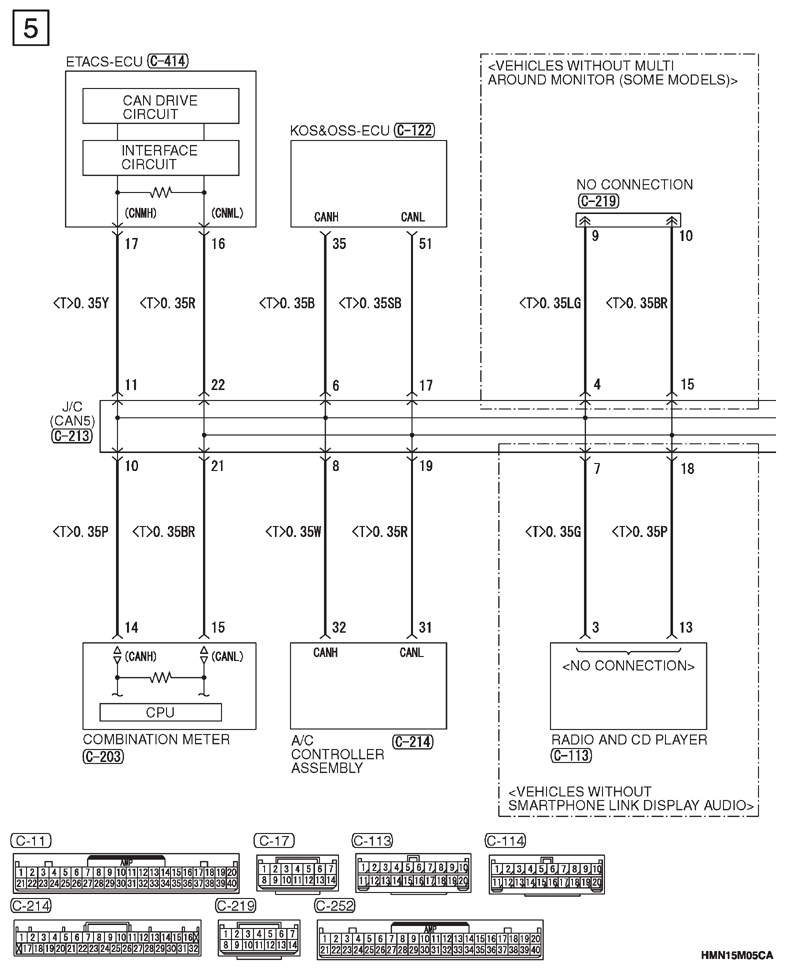

G13326197Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

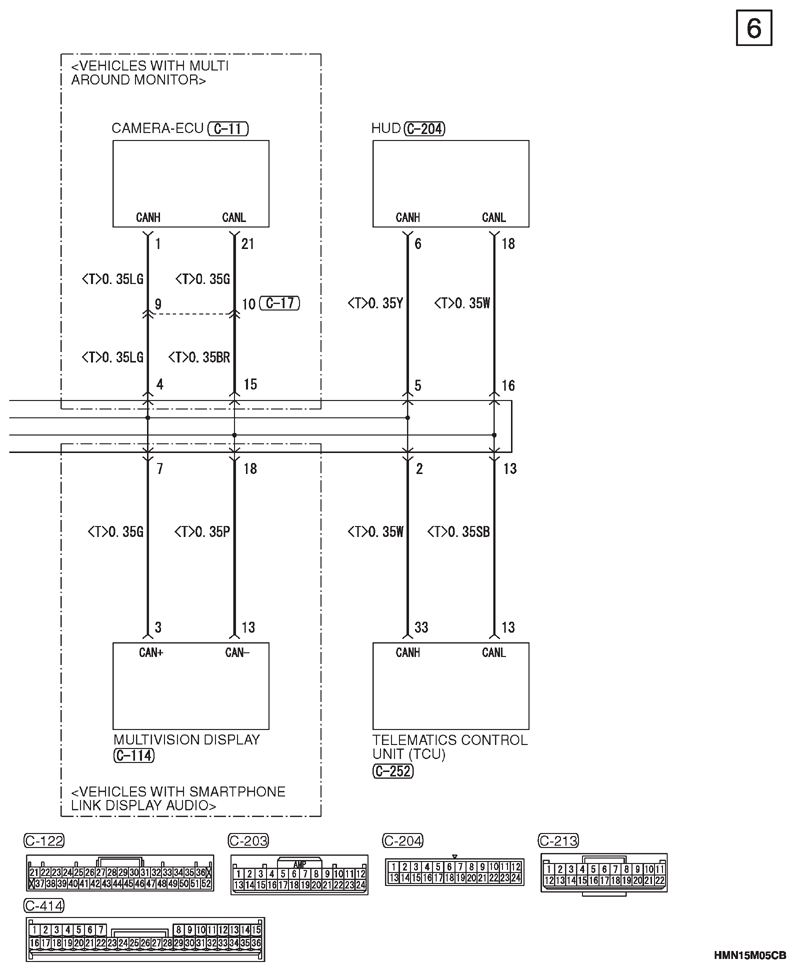

G13326198Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

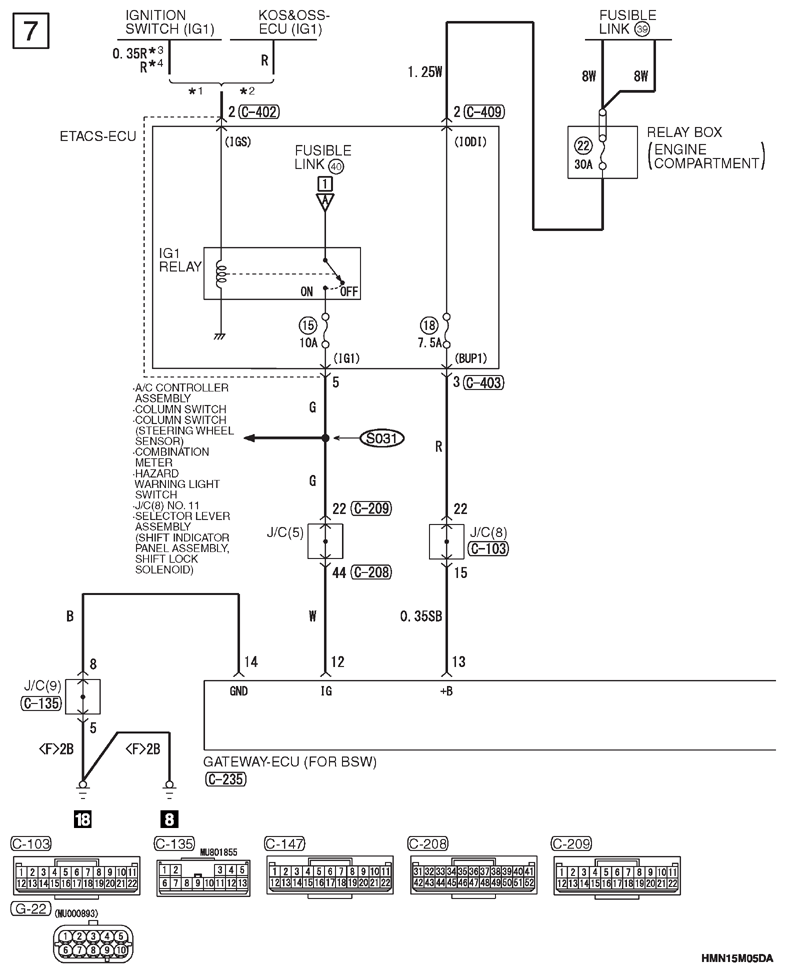

G13326199Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

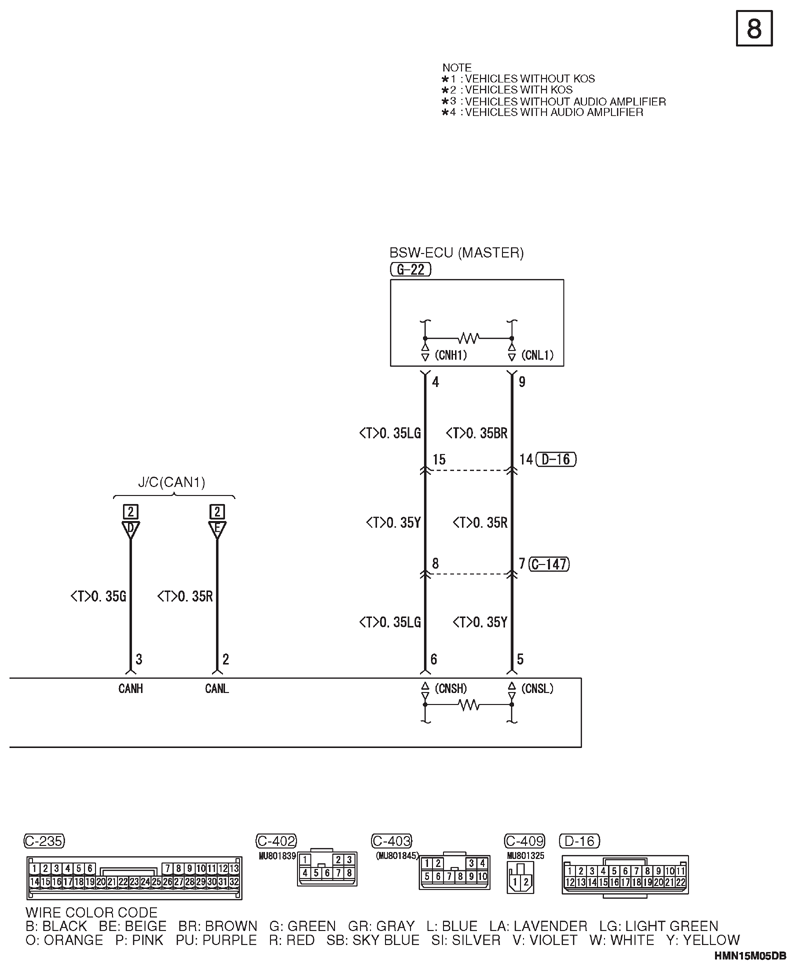

G13326200Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
