Notes
Removal And Installation: Notes
Pre-removal and Post-installation Operation
Engine Room Under Cover Front A, B and Engine Room Side Cover (RH) Removal and Installation (Refer to
UNDER COVER
).
Engine Coolant Draining and Refilling (Refer to
ENGINE COOLANT REPLACEMENT
).
Engine Oil Draining and Refilling (Refer to
ENGINE OIL REPLACEMENT
).
Engine Cover Removal (Refer to
ENGINE COVER
).
Charge air cooler Intake Air Hose A Removal and Installation (Refer to
CHARGE AIR COOLER
).
Air Cleaner Assembly Removal and Installation (Refer to
AIR CLEANER
).
Front Exhaust Pipe Removal and Installation (Refer to
EXHAUST PIPE, MAIN MUFFLER AND CATALYTIC CONVERTER
).
Strut Tower Bar Removal and Installation (Refer to
STRUT TOWER BAR
).

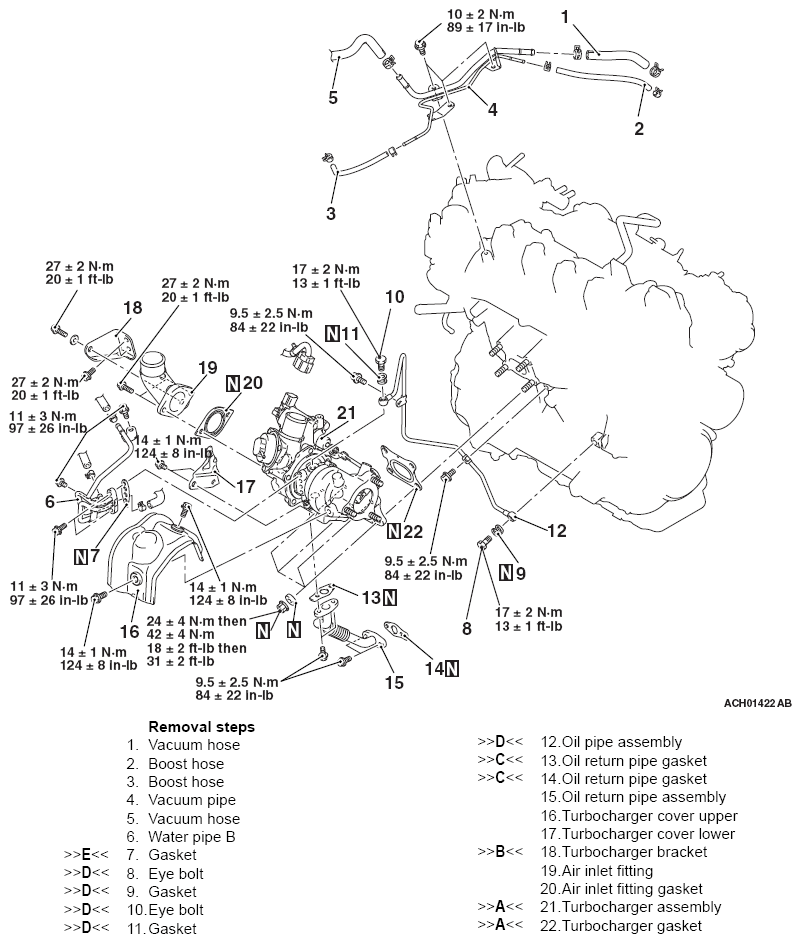

Fig 1: Removing/Installing Turbocharger Assembly Components Location With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
