Notes
Removal And Installation: Notes
Pre-removal Operation
Fuel Line Pressure Reduction (Refer to, On-vehicle Service -
REDUCE PRESSURIZED FUEL LINES
).
Fuel Draining.
Exhaust Center Pipe Removal (Refer to,
EXHAUST PIPE AND MAIN MUFFLER
).
Rear Floor Under Cover Removal (Refer to,
UNDER COVER
).
Post-installation Operation
Rear Floor Under Cover Installation (Refer to,
UNDER COVER
).
Exhaust Center Pipe Installation (Refer to,
EXHAUST PIPE AND MAIN MUFFLER
).
Fuel Refilling.
Fuel Leak Check.
<FUEL TANK>

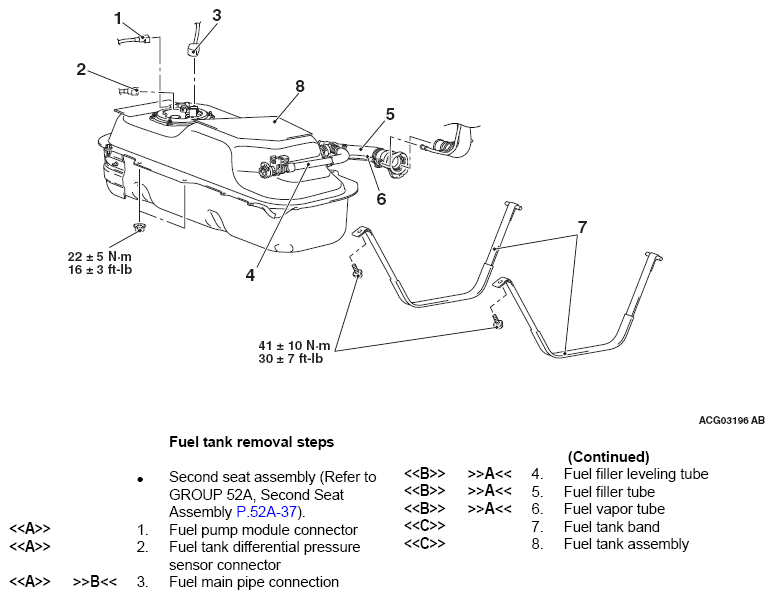

Fig 1: Removing/Installing Fuel Tank Components Location With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
<FUEL TANK FILLER TUBE>

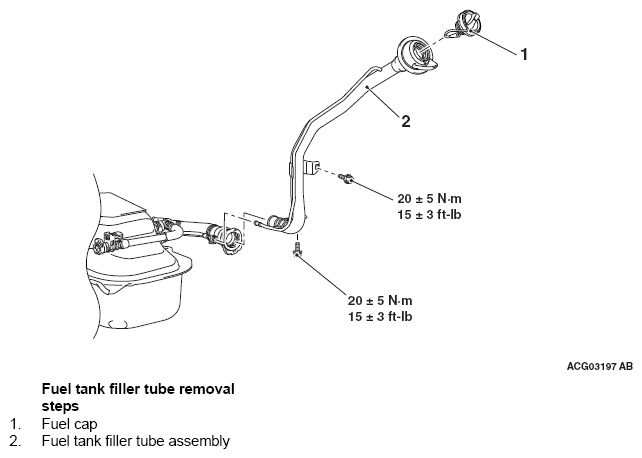

Fig 2: Removing/Installing Fuel Tank Filler Tube Components Location With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
