Power Seat Check

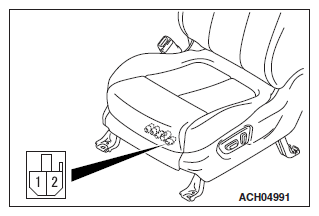

Connect the (+) terminal of the battery to the power seat connector terminal No. 2 and the (-) terminal to terminal No. 1, and check that the power seat works normally.

G12148622Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
