Tire Pressure Monitoring System (TPMS)

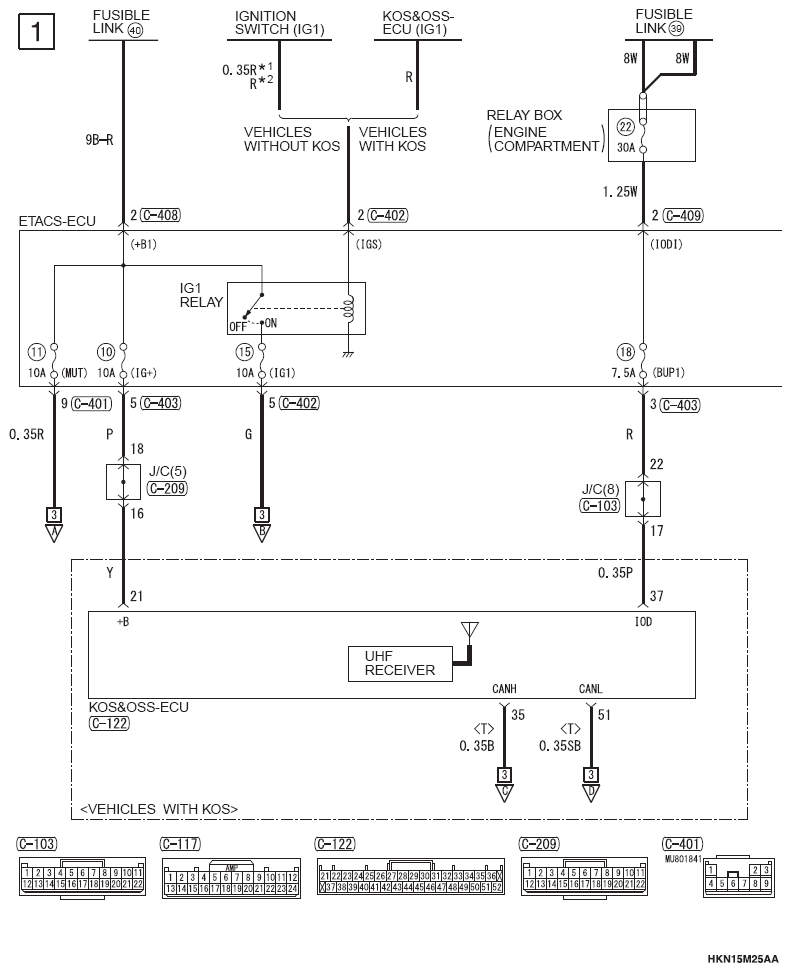

G12651721Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

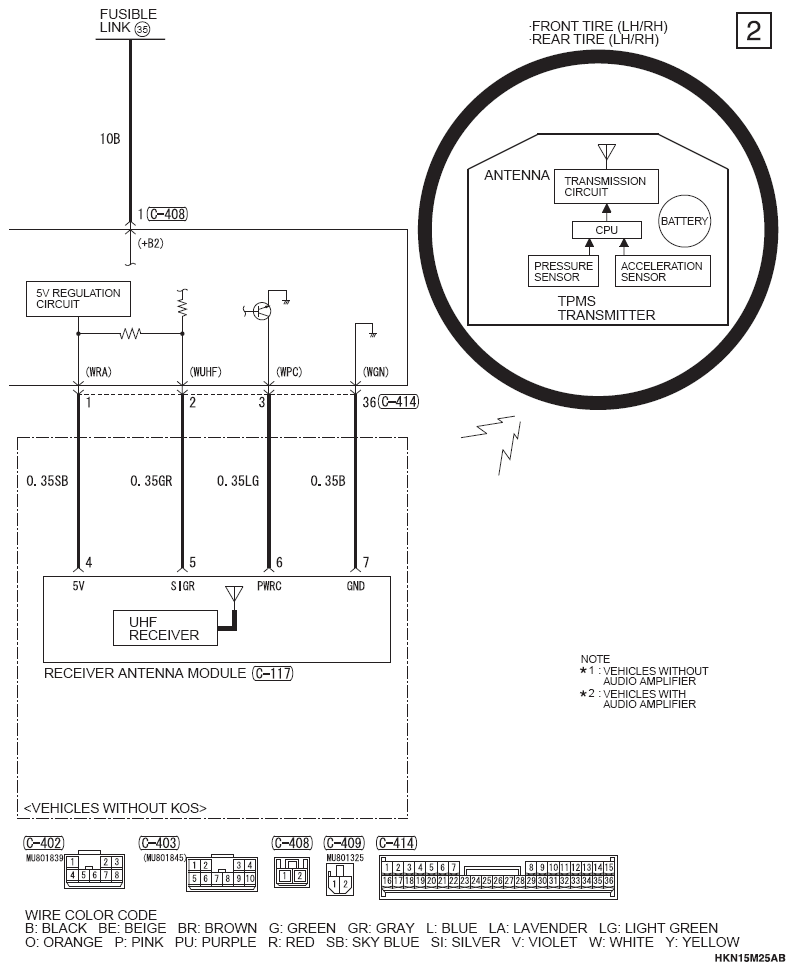

G12651722Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

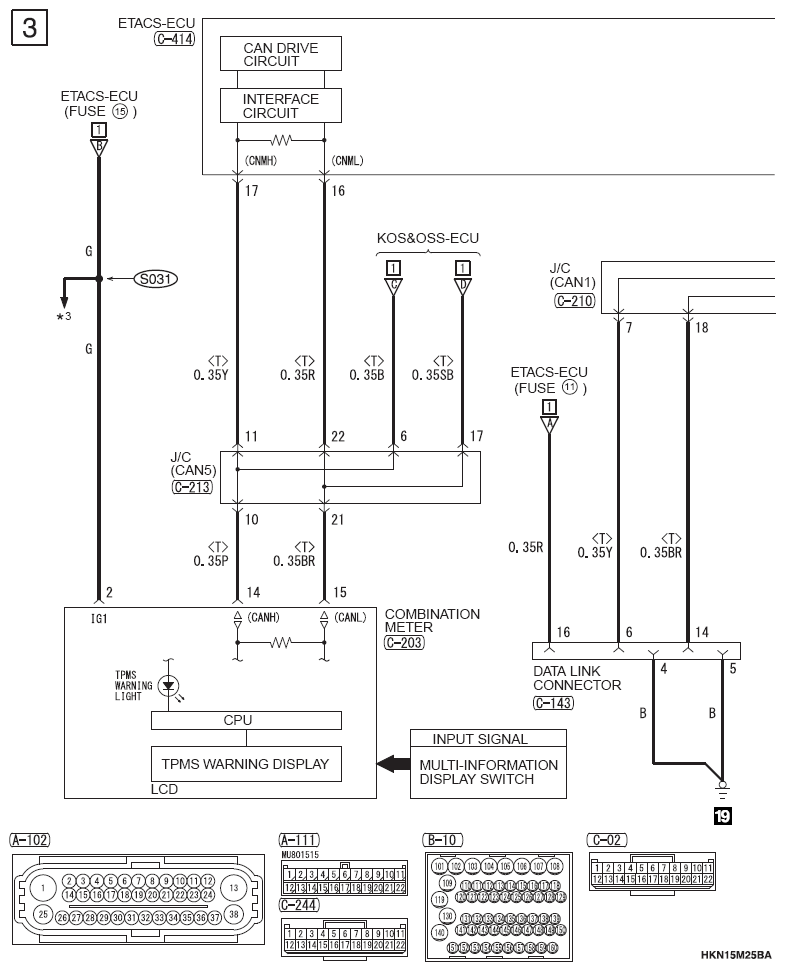

G12651723Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

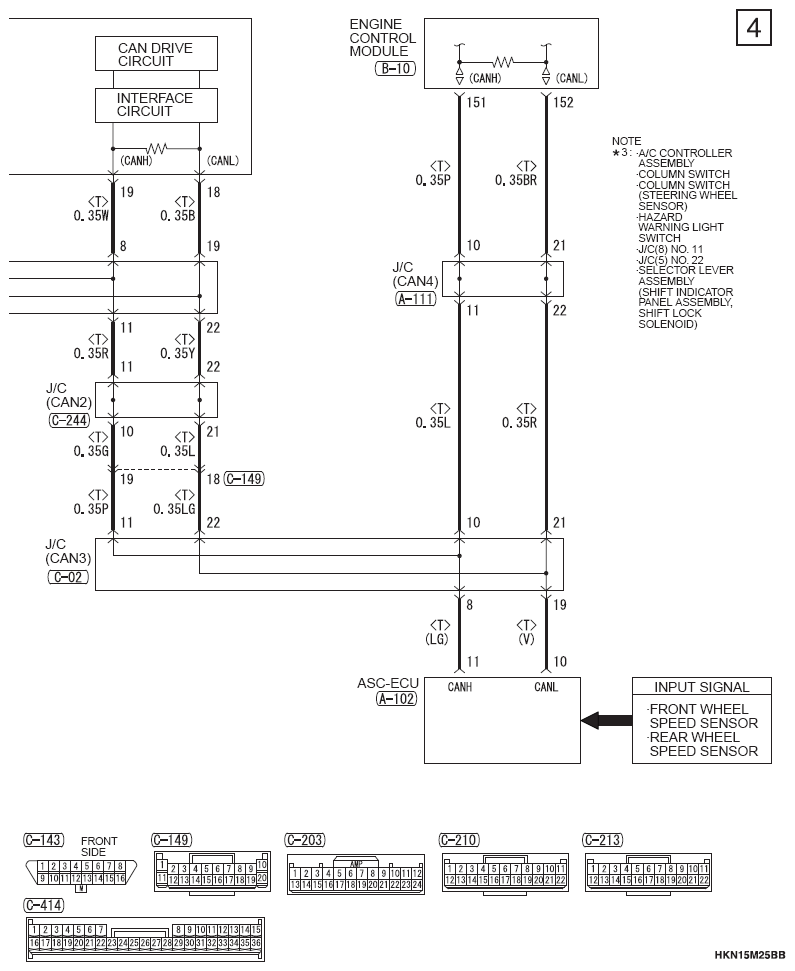

G12651724Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
