Front Fog Light

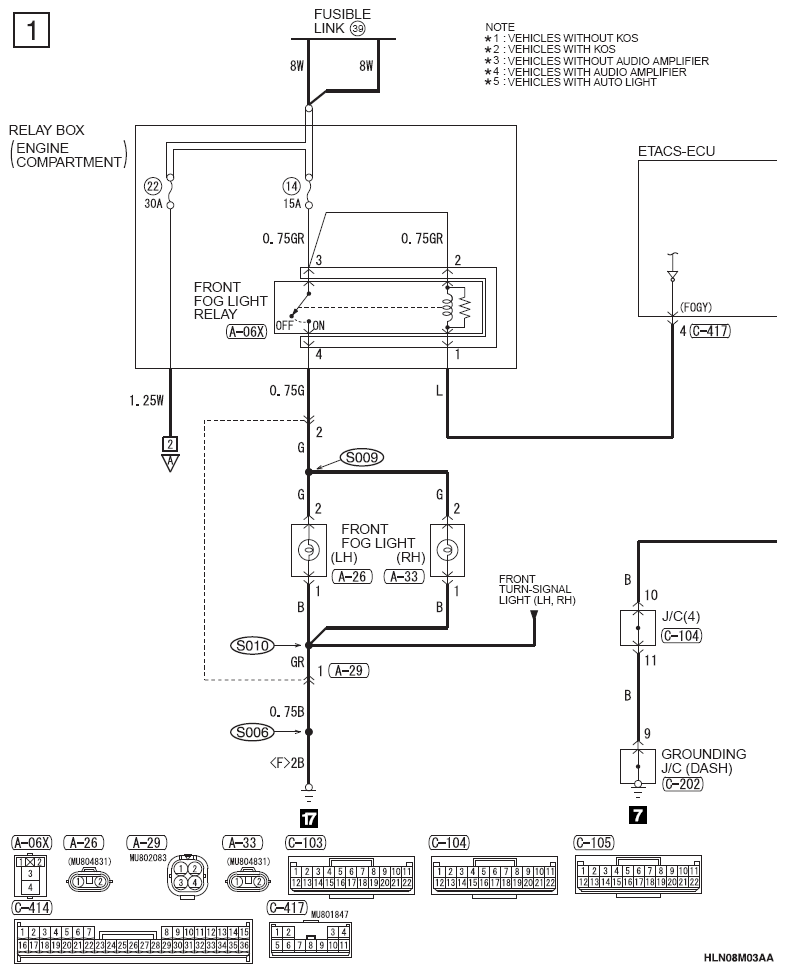

G12651449

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

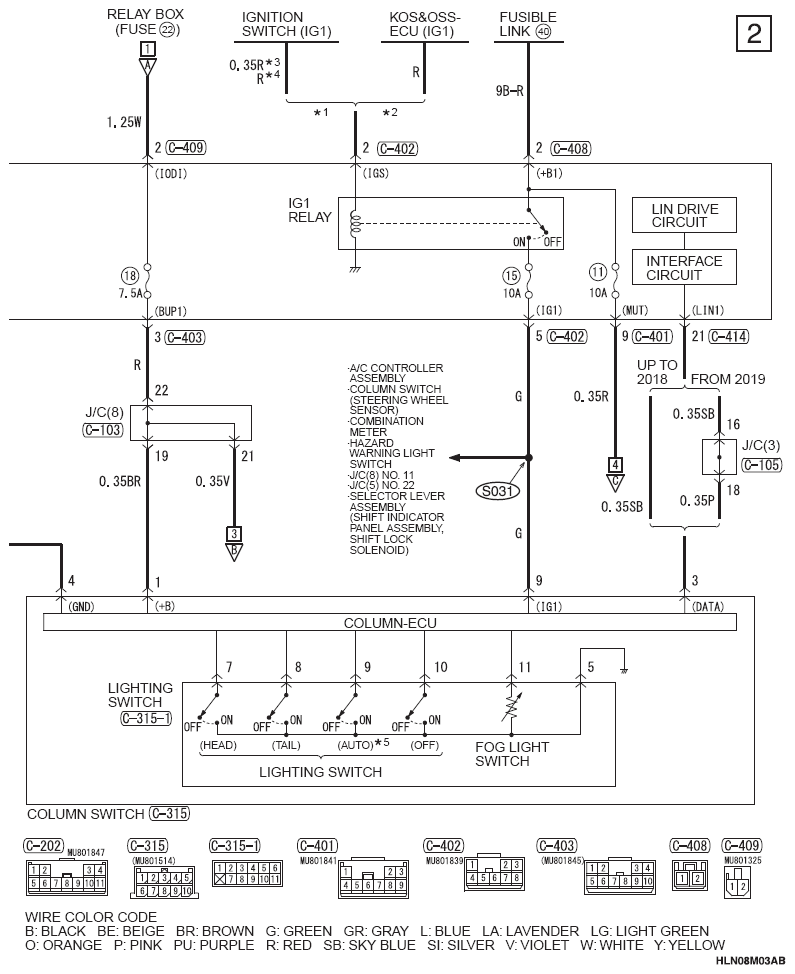

G12651450

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

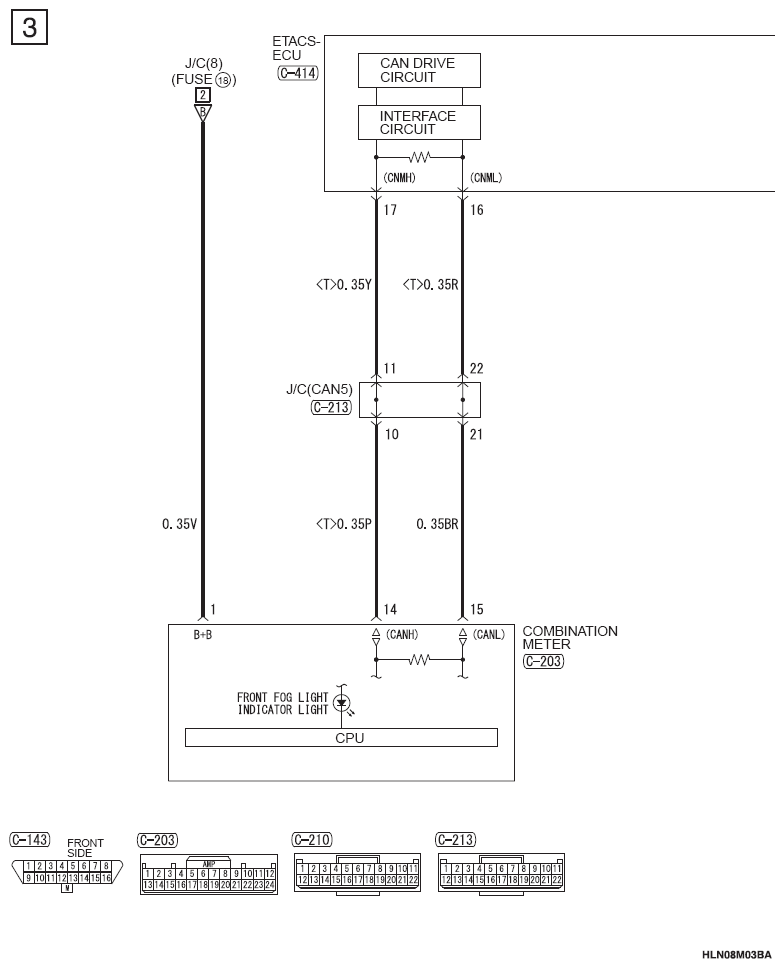

G12651451

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

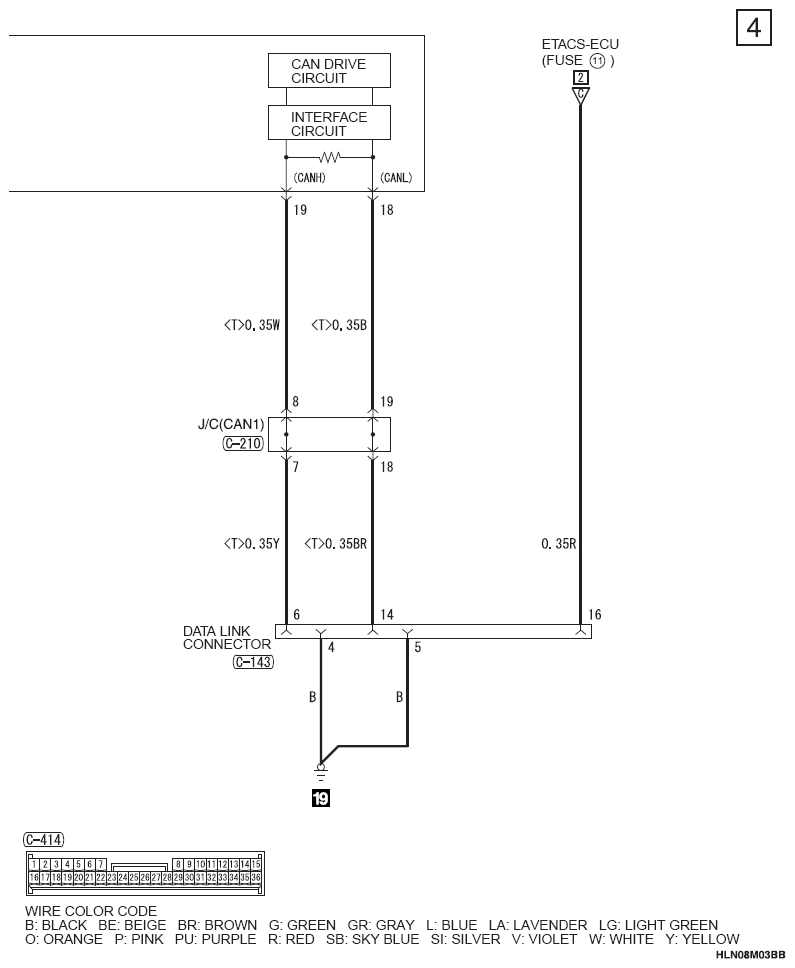

G12651452

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
