Disassembly And Assembly: Notes

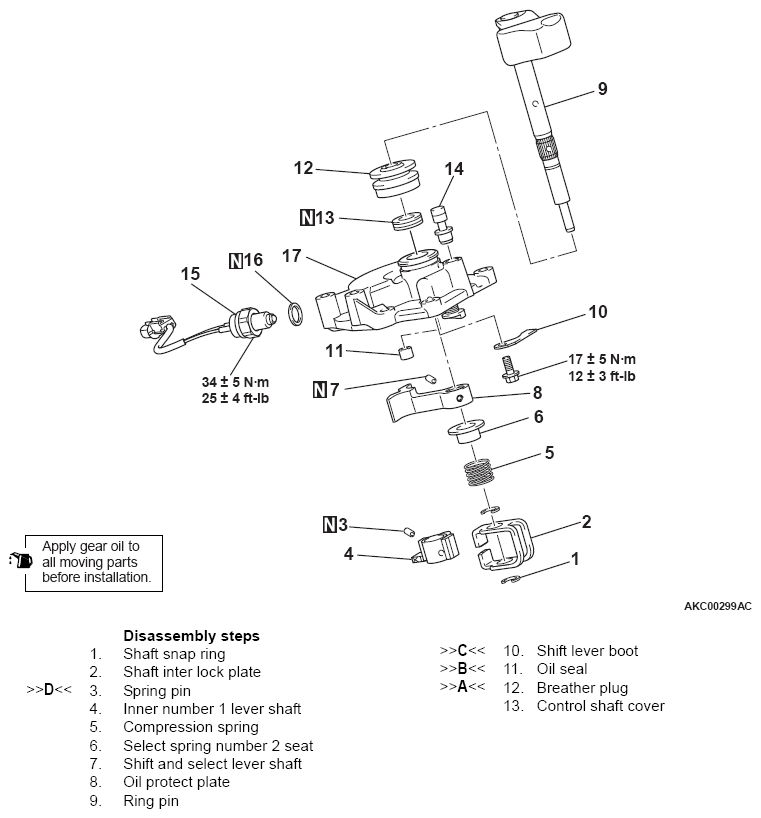

Fig 1: Disassembling/Assembling Control Housing Components With Torque Specification
G12361525Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
