How To Read Diagnostic Trouble Codes: Notes

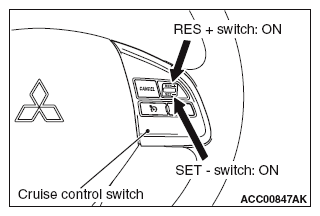

  1. Turn the ignition switch to the "ON" position while pushing the "SET-" switch. Then, within one second, release the "SET-" switch and push the "RES+" switch.
    G09669367Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Read a DTC by observing the flash display pattern of the cruise control indicator light in the combination meter.
G11278021Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
