Stoplight Switch Check
WARNING: This page is about a different car, the 2017 Mitsubishi Mirage. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Do not apply grease or lubricant to the switch and the switch installation section to avoid malfunction of the switch. In addition, do not use gloves which have grease on them.
Check for continuity between the terminals of the switch.
| Check condition | Terminal connector of tester | Normal condition |
|---|---|---|
| At free position | 1 - 2 (for stoplight switch) | Should be less than 2 ohm |
| 3 - 4 (for brake monitoring switch) | Open loop | |

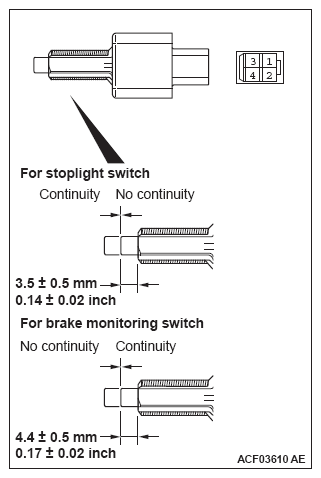

| Press the plunger from the edge of the outer case by the dimension shown in the figure. | 1 - 2 (for stoplight switch) | Open loop |
| 3 - 4 (for brake monitoring switch) | Should be less than 2 ohm |
