REMOVAL AND INSTALLATION <2.4L Engine>
REMOVAL AND INSTALLATION <2.4L Engine>

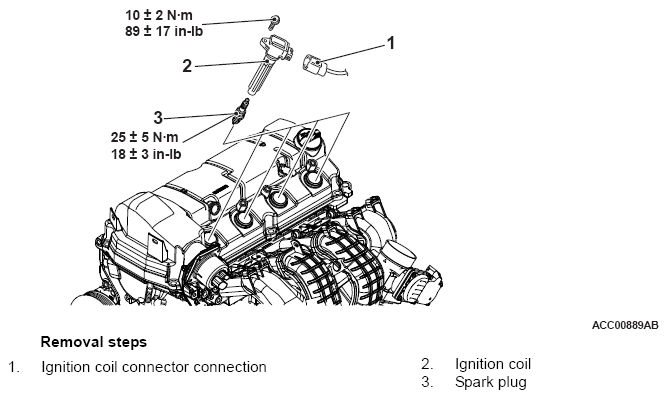

Fig 1: Removing/Installing Ignition Coil Components With Torque Specifications (2.4L Engine)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
