Continuously Variable Transaxle On-Vehicle Service
>>
Sensors
>>
Removal And Installation
Removal And Installation

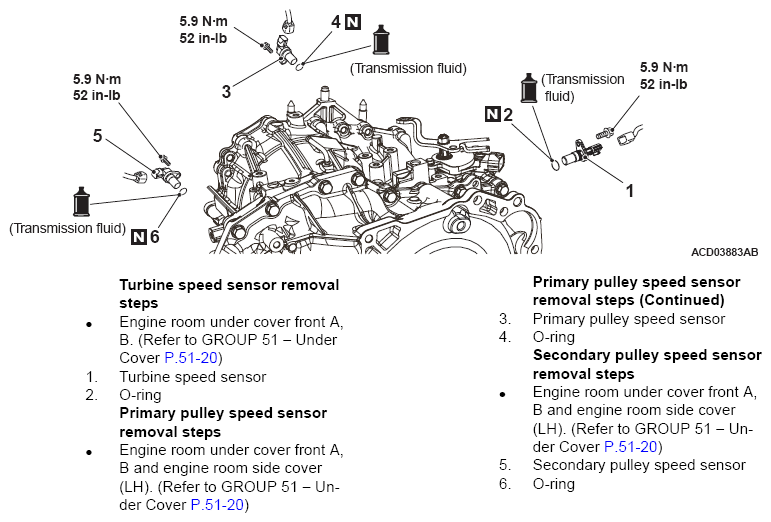

Fig 1: Removing/Installing Sensors Components With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
