Removal And Installation: Notes

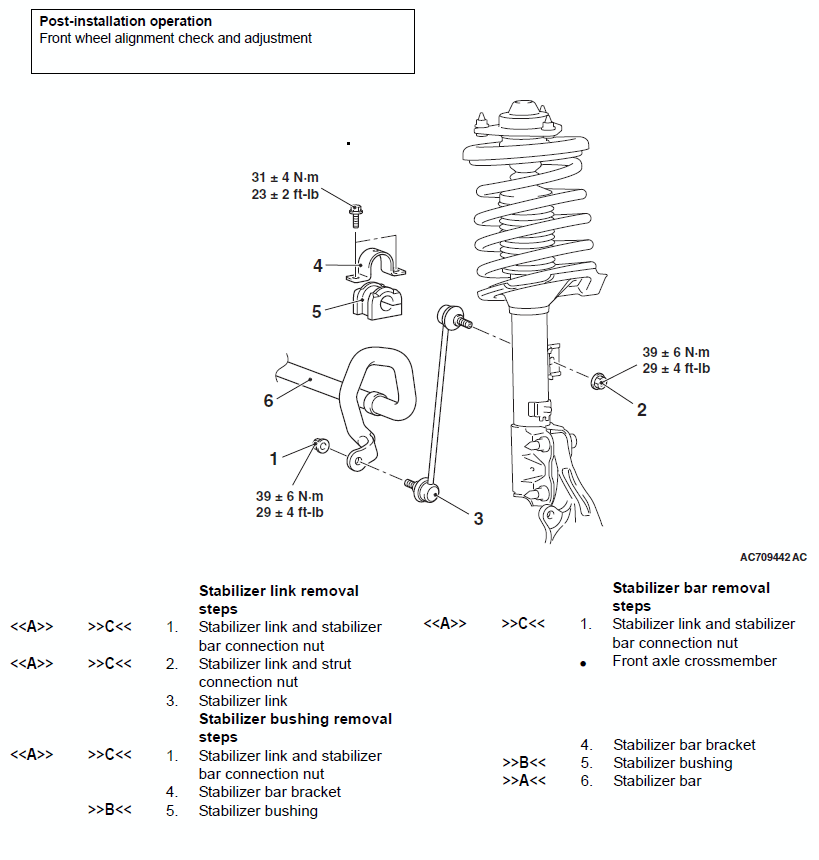

Fig 1: Removing/Installing Stabilizer Bar Related Components With Torque Specifications

G09626891

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
