Removal And Installation: Notes

Pre-removal operation

Engine Room Under Cover A and Side Cover Removal.
Transmission Fluid Draining (Refer to TRANSMISSION FLUID CHANGE ).
Engine Coolant Draining (Refer to ON-VEHICLE SERVICE ).
Air Cleaner Bracket Removal (Refer to AIR CLEANER ).
Battery and Battery Tray Removal.
ECM Removal (Refer to ENGINE CONTROL MODULE ).
Driveshaft Removal (Refer to DRIVESHAFT ASSEMBLY ).

Post-installation operation

Driveshaft Installation (Refer to DRIVESHAFT ASSEMBLY ).
ECM installation (Refer to ENGINE CONTROL MODULE ).
Battery and battery tray installation.
Air Cleaner Assembly Installation (Refer to AIR CLEANER ).
Engine Coolant Refilling (Refer to ON-VEHICLE SERVICE ).
Transmission Fluid Refilling (Refer to TRANSMISSION FLUID CHANGE ).
Engine Room Under Cover A and Side Cover Installation.

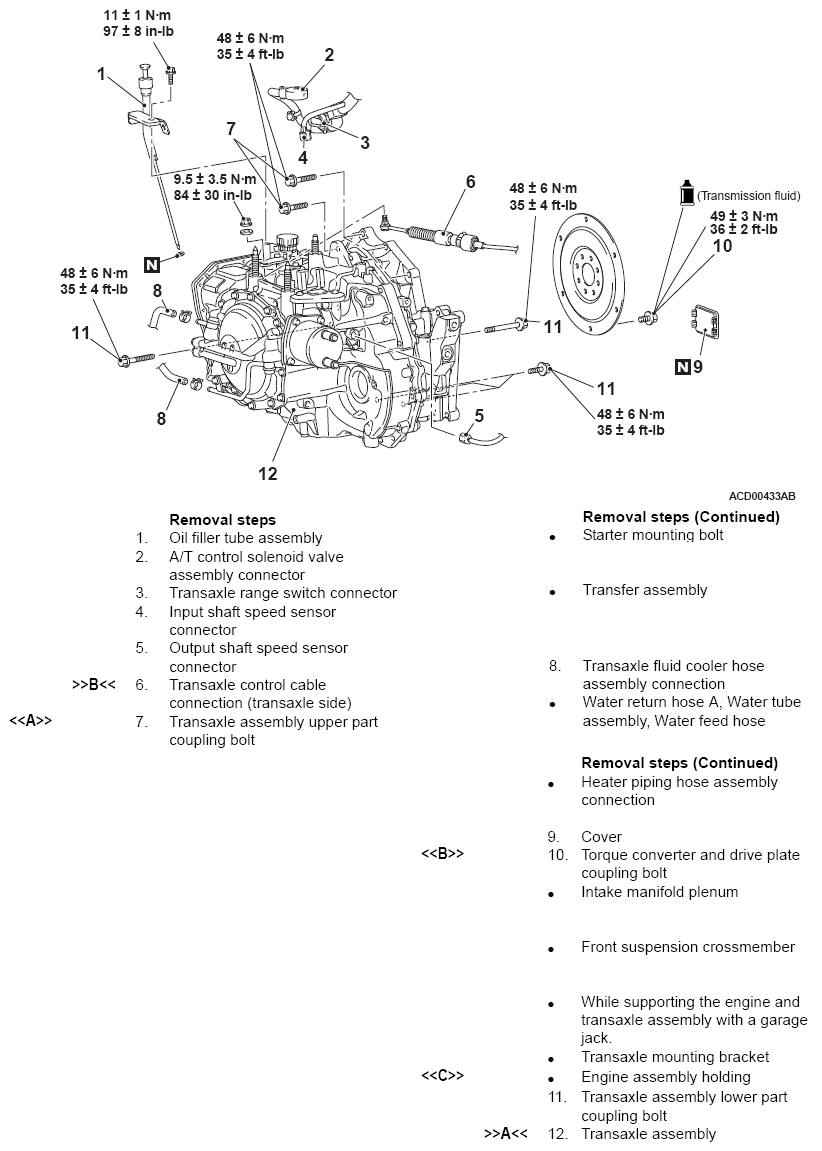

Fig 1: Identifying Transaxle Control Components

G10223392

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB991454: Engine Hanger Balancer
MB991527: Engine Hanger
MB991895: Engine Hanger
MB991928: Engine Hanger
MB991932: Foot
MB992208: Engine hanger plate A
MB992906: Engine hanger attachment
