Transaxle Assembly Installation

Fully push the torque converter into the transaxle side, and then assemble the transaxle assembly to the engine.

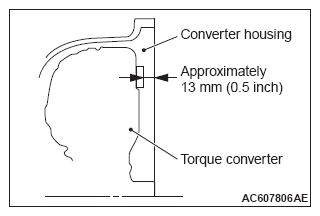

Fig 1: Identifying Torque Converter And Converter Housing

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
