Mitsubishi
>>
2015
>>
Mirage RF
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Lubrication System
>>
Engine Lubrication
>>
Engine Oil Pressure Switch
>>
Removal And Installation
>>
Notes
Removal And Installation: Notes

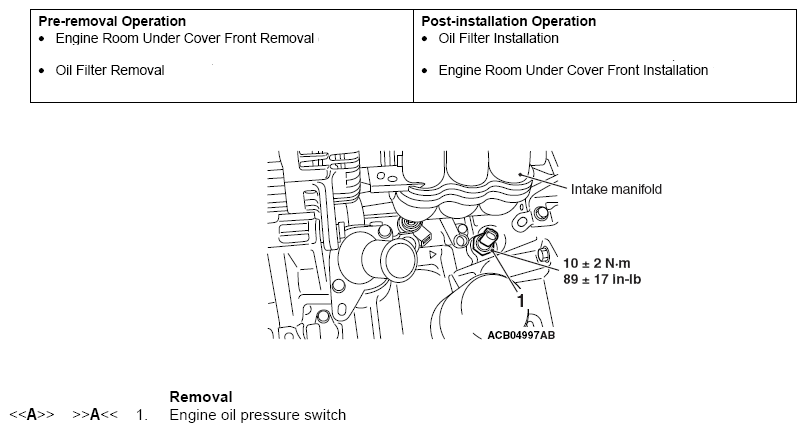

Fig 1: Removing/Installing Engine Oil Pressure Switch And Mounting Bolt With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
