Eng Control Harness Connector Bracket

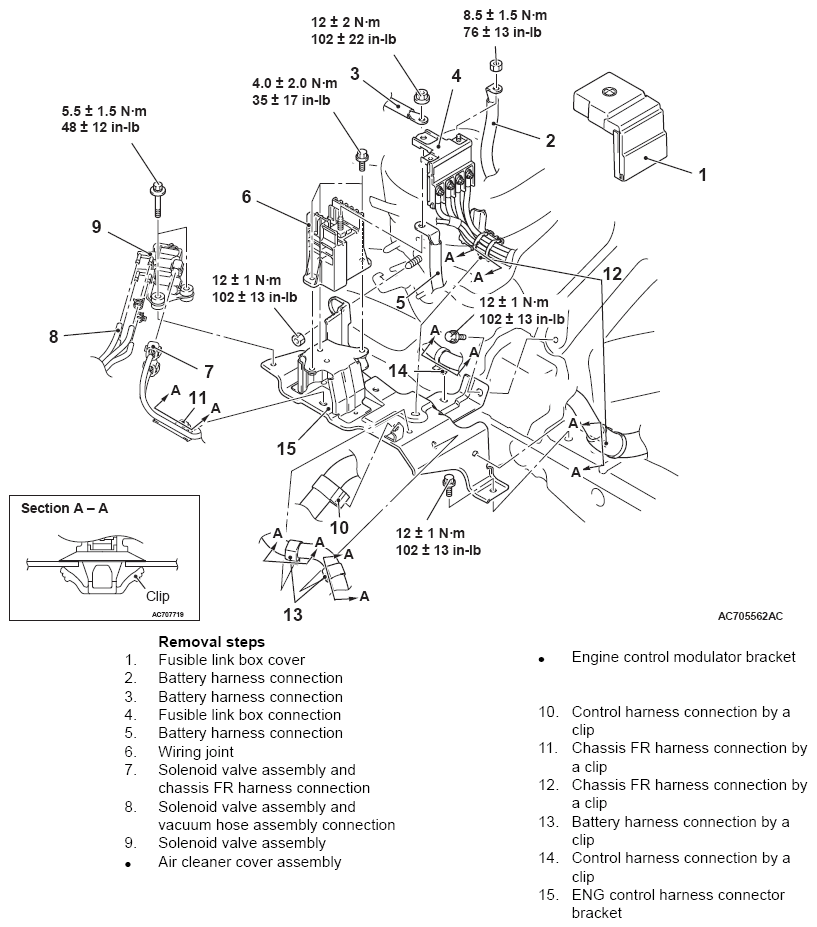

Fig 1: Removing/Installing ENG Control Harness Connector Bracket With Torque Specifications

G09652381

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
