Removal And Installation: Notes

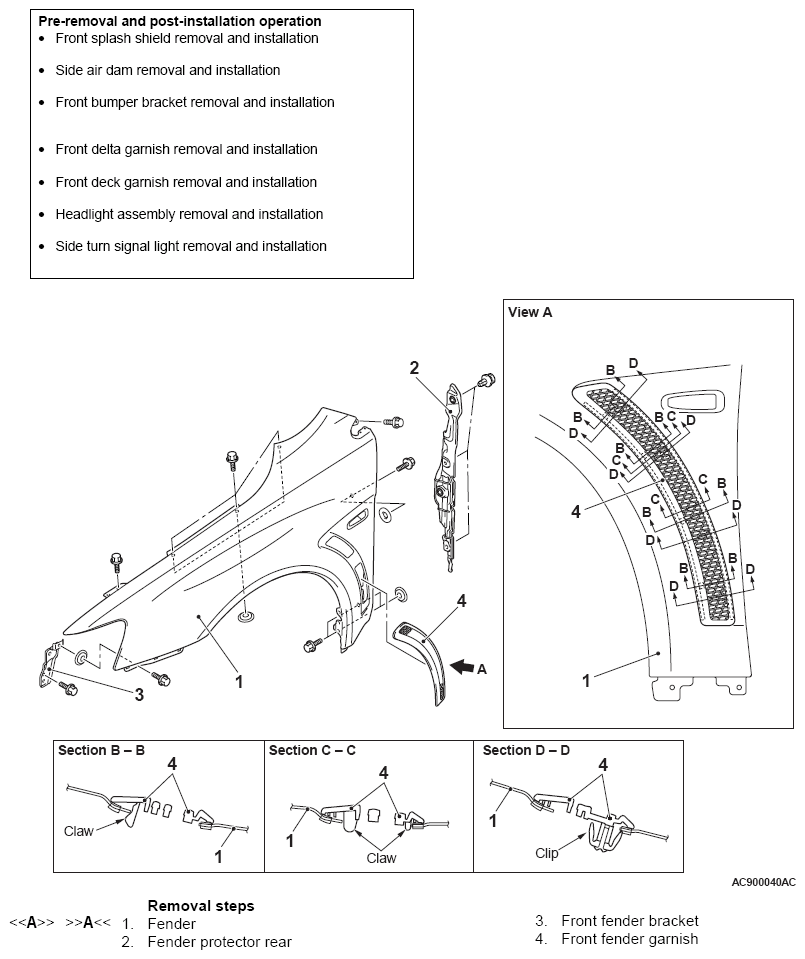

Fig 1: Identifying Fender Removal & Installation

G09651043

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
